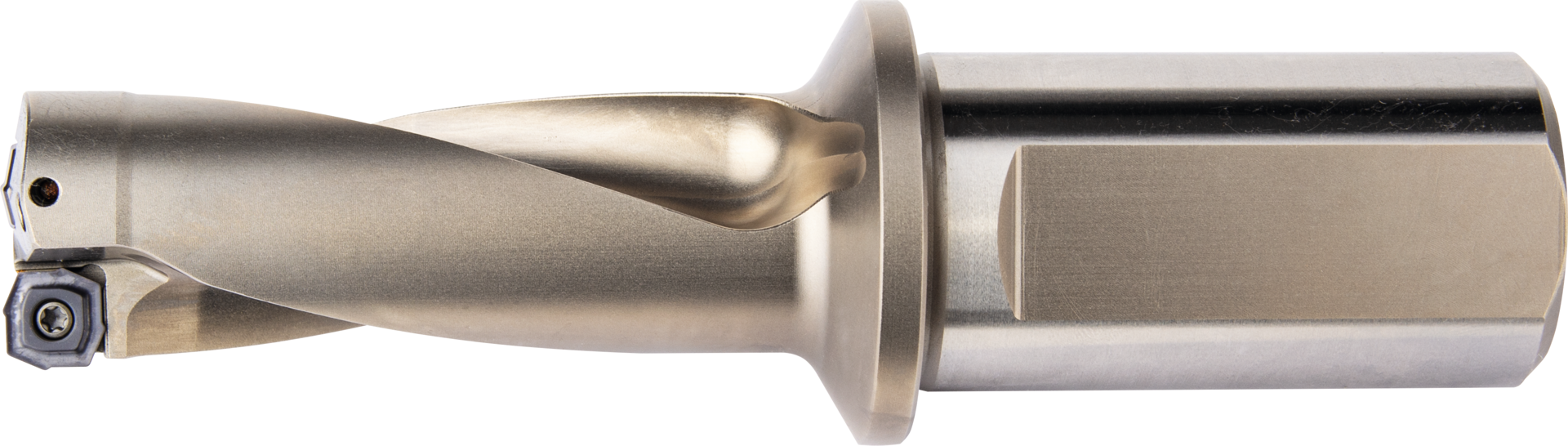

Wendeschneidplattenbohrer TopCut Four™ IK 4xD für WSP Gr. C D23mm
Compare
Lieferumfang:
- Wendeschneidplattenbohrer
- Spannschrauben
- Torx-Schlüssel
| Einsatz: | für stabile und instabile Bedingungen bei vielseitigen Bohranwendungen und Werkstückmaterialien, ohne Pilotbohrung, in allen handelsüblichen Werkzeugaufnahmen, auf BAZ und CNC-Maschinen |
|---|---|
| Einstellbarkeit: | Nein |
| IK: | mit Kühlschmierstoff-Austritt axial schräg |
| Norm: | Werksnorm |
| Schneidrichtung: | rechts |
| x D: | 4 |
Variants

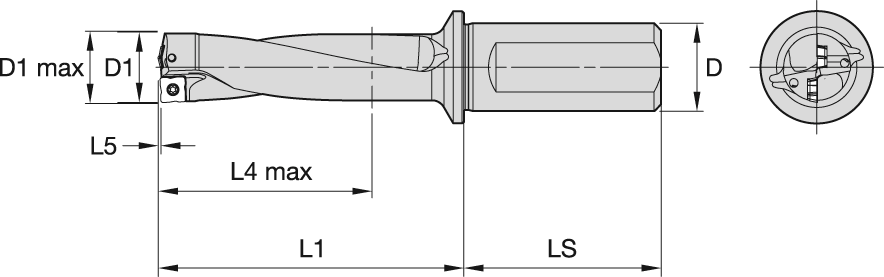

| Position | Code | L4 max (mm) | LS (mm) | L1 (mm) | D (mm) | Passend zu | D1 (mm) | L (mm) | L5 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23 |
|
12240323 | 92 | 56 | 122,8 | 25 | WSP-Gr. C | 23 | 178,8 | 0,8 | 1 Stück |
€353.50
|
|||
| 6 |
|
12240314 | 56 | 56 | 76,5 | 25 | WSP-Gr. B | 14 | 132,5 | 0,49 | 1 Stück |
€328.50
|
|||
| 4 |
|
12240313 | 52 | 50 | 72,5 | 20 | WSP-Gr. A | 13 | 122,5 | 0,47 | 1 Stück |
€328.50
|
|||
| 71 |
|
12240368 | 274 | 70 | 328,4 | 40 | WSP-Gr. H | 68 | 398,4 | 2,36 | 1 Stück |
€546.00
|
|||
| 44 |
|
12240342 | 169 | 70 | 213,5 | 40 | WSP-Gr. F | 42 | 283,5 | 1,51 | 1 Stück |
€430.50
|
|||
| 35 |
|
12240334 | 137 | 70 | 174,2 | 40 | WSP-Gr. E | 34 | 244,2 | 1,21 | 1 Stück |
€376.00
|
|||
| 66 |
|
12240363 | 254 | 70 | 305,2 | 40 | WSP-Gr. H | 63 | 375,2 | 2,23 | 1 Stück |
€546.00
|
|||
| 16 |
|
12240319 | 76 | 56 | 101,7 | 25 | WSP-Gr. C | 19 | 157,7 | 0,68 | 1 Stück |
€353.50
|
|||
| 38 |
|
12240337 | 149 | 70 | 189,3 | 40 | WSP-Gr. F | 37 | 259,3 | 1,35 | 1 Stück |
€430.50
|
|||
| 65 |
|
12240362 | 250 | 70 | 300,2 | 40 | WSP-Gr. H | 62 | 370,2 | 2,2 | 1 Stück |
€546.00
|
|||
| 28 |
|
12240327 | 109 | 60 | 141 | 32 | WSP-Gr. D | 27 | 201 | 0,97 | 1 Stück |
€353.50
|
|||
| 21 |
|
12240322 | 88 | 56 | 117,8 | 25 | WSP-Gr. C | 22 | 173,8 | 0,78 | 1 Stück |
€353.50
|
|||
| 42 |
|
12240340 | 161 | 70 | 203,4 | 40 | WSP-Gr. F | 40 | 273,4 | 1,45 | 1 Stück |
€430.50
|
|||
| 33 |
|
12240332 | 129 | 60 | 163,1 | 32 | WSP-Gr. E | 32 | 223,1 | 1,15 | 1 Stück |
€376.00
|
|||
| 10 |
|
12240316 | 64 | 56 | 86,6 | 25 | WSP-Gr. B | 16 | 142,6 | 0,58 | 1 Stück |
€328.50
|
|||
| 41 |
|
12240339 | 157 | 70 | 199,4 | 40 | WSP-Gr. F | 39 | 269,4 | 1,41 | 1 Stück |
€430.50
|
|||
| 12 |
|
12240317 | 68 | 56 | 91,6 | 25 | WSP-Gr. B | 17 | 147,6 | 0,61 | 1 Stück |
€341.50
|
|||
| 58 |
|
12240355 | 221 | 70 | 271,9 | 40 | WSP-Gr. G | 55 | 341,9 | 1,92 | 1 Stück |
€507.00
|
|||
| 31 |
|
12240330 | 121 | 60 | 153,1 | 32 | WSP-Gr. E | 30 | 213,1 | 1,09 | 1 Stück |
€376.00
|
|||
| 5 |
|
12240313,5 | 54 | 50 | 75,5 | 20 | WSP-Gr. A | 13,5 | 125,5 | 0,48 | 1 Stück |
€328.50
|
|||
| 34 |
|
12240333 | 133 | 70 | 165,2 | 40 | WSP-Gr. E | 33 | 235,2 | 1,18 | 1 Stück |
€376.00
|
|||
| 57 |
|
12240354 | 217 | 70 | 267,9 | 40 | WSP-Gr. G | 54 | 337,9 | 1,89 | 1 Stück |
€465.00
|
|||
| 19 |
|
12240320,5 | 82 | 56 | 109,7 | 25 | WSP-Gr. C | 20,5 | 165,7 | 0,74 | 1 Stück |
€353.50
|
|||
| 39 |
|
12240337,5 | 151 | 70 | 191,4 | 40 | WSP-Gr. F | 37,5 | 261,4 | 1,36 | 1 Stück |
€430.50
|
|||
| 48 |
|
12240346 | 185 | 70 | 228,7 | 40 | WSP-Gr. G | 46 | 298,7 | 1,67 | 1 Stück |
€430.50
|
|||
| 55 |
|
12240352 | 209 | 70 | 257,8 | 40 | WSP-Gr. G | 52 | 327,8 | 1,84 | 1 Stück |
€465.00
|
|||
| 45 |
|
12240343 | 173 | 70 | 218,5 | 40 | WSP-Gr. F | 43 | 288,5 | 1,53 | 1 Stück |
€430.50
|
|||
| 50 |
|
12240348 | 193 | 70 | 238,7 | 40 | WSP-Gr. G | 48 | 308,7 | 1,73 | 1 Stück |
€430.50
|
|||
| 43 |
|
12240341 | 165 | 70 | 208,5 | 40 | WSP-Gr. F | 41 | 278,5 | 1,48 | 1 Stück |
€430.50
|
|||
| 17 |
|
12240319,5 | 78 | 56 | 104,7 | 25 | WSP-Gr. C | 19,5 | 160,7 | 0,71 | 1 Stück |
€353.50
|
|||
| 49 |
|
12240347 | 189 | 70 | 233,7 | 40 | WSP-Gr. G | 47 | 303,7 | 1,7 | 1 Stück |
€430.50
|
|||
| 25 |
|
12240325 | 100 | 60 | 130,9 | 32 | WSP-Gr. D | 25 | 190,9 | 0,91 | 1 Stück |
€353.50
|
|||
| 59 |
|
12240356 | 225 | 70 | 276,9 | 40 | WSP-Gr. G | 56 | 346,9 | 1,94 | 1 Stück |
€507.00
|
|||
| 8 |
|
12240315 | 60 | 56 | 81,5 | 25 | WSP-Gr. B | 15 | 137,5 | 0,55 | 1 Stück |
€328.50
|
|||
| 24 |
|
12240324 | 96 | 56 | 124,9 | 25 | WSP-Gr. D | 24 | 180,9 | 0,87 | 1 Stück |
€353.50
|
|||
| 46 |
|
12240344 | 177 | 70 | 223,6 | 40 | WSP-Gr. F | 44 | 293,6 | 1,56 | 1 Stück |
€430.50
|
|||
| 26 |
|
12240326 | 104 | 60 | 135,9 | 32 | WSP-Gr. D | 26 | 195,9 | 0,94 | 1 Stück |
€353.50
|
|||
| 61 |
|
12240358 | 234 | 70 | 281,1 | 40 | WSP-Gr. H | 58 | 351,1 | 2,09 | 1 Stück |
€507.00
|
|||
| 29 |
|
12240328 | 113 | 60 | 146 | 32 | WSP-Gr. D | 28 | 206 | 0,99 | 1 Stück |
€353.50
|
|||
| 54 |
|
12240351 | 205 | 70 | 252,8 | 40 | WSP-Gr. G | 51 | 322,8 | 1,81 | 1 Stück |
€465.00
|
|||
| 36 |
|
12240335 | 141 | 70 | 179,2 | 40 | WSP-Gr. E | 35 | 249,2 | 1,24 | 1 Stück |
€376.00
|
|||
| 53 |
|
12240350,5 | 203 | 70 | 250,8 | 40 | WSP-Gr. G | 50,5 | 320,8 | 1,8 | 1 Stück |
€465.00
|
|||
| 56 |
|
12240353 | 213 | 70 | 262,9 | 40 | WSP-Gr. G | 53 | 332,9 | 1,87 | 1 Stück |
€465.00
|
|||
| 47 |
|
12240345 | 181 | 70 | 228,6 | 40 | WSP-Gr. F | 45 | 298,6 | 1,59 | 1 Stück |
€430.50
|
|||
| 3 |
|
12240312,7 | 51 | 50 | 71,3 | 20 | WSP-Gr. A | 12,7 | 121,3 | 0,46 | 1 Stück |
€328.50
|
|||
| 13 |
|
12240317,5 | 70 | 56 | 94,6 | 25 | WSP-Gr. B | 17,5 | 150,6 | 0,63 | 1 Stück |
€341.50
|
|||
| 51 |
|
12240349 | 197 | 70 | 243,8 | 40 | WSP-Gr. G | 49 | 313,8 | 1,76 | 1 Stück |
€465.00
|
|||
| 60 |
|
12240357 | 230 | 70 | 276,1 | 40 | WSP-Gr. H | 57 | 346,1 | 2,06 | 1 Stück |
€507.00
|
|||
| 32 |
|
12240331 | 125 | 60 | 158,1 | 32 | WSP-Gr. E | 31 | 218,1 | 1,12 | 1 Stück |
€376.00
|
|||
| 37 |
|
12240336 | 145 | 70 | 184,3 | 40 | WSP-Gr. E | 36 | 254,3 | 1,27 | 1 Stück |
€376.00
|
|||
| 52 |
|
12240350 | 201 | 70 | 247,8 | 40 | WSP-Gr. G | 50 | 317,8 | 1,79 | 1 Stück |
€465.00
|
|||
| 68 |
|
12240365 | 262 | 70 | 314,3 | 40 | WSP-Gr. H | 65 | 384,3 | 2,28 | 1 Stück |
€546.00
|
|||
| 18 |
|
12240320 | 80 | 56 | 106,7 | 25 | WSP-Gr. C | 20 | 162,7 | 0,72 | 1 Stück |
€353.50
|
|||
| 62 |
|
12240359 | 238 | 70 | 286,1 | 40 | WSP-Gr. H | 59 | 356,1 | 2,12 | 1 Stück |
€507.00
|
|||
| 27 |
|
12240326,5 | 107 | 60 | 139 | 32 | WSP-Gr. D | 26,5 | 199 | 0,95 | 1 Stück |
€353.50
|
|||
| 30 |
|
12240329 | 117 | 60 | 151 | 32 | WSP-Gr. D | 29 | 211 | 1,02 | 1 Stück |
€353.50
|
|||
| 70 |
|
12240367 | 270 | 70 | 323,3 | 40 | WSP-Gr. H | 67 | 393,3 | 2,33 | 1 Stück |
€546.00
|
|||
| 67 |
|
12240364 | 258 | 70 | 309,3 | 40 | WSP-Gr. H | 64 | 379,3 | 2,26 | 1 Stück |
€546.00
|
|||
| 9 |
|
12240315,5 | 62 | 56 | 84,6 | 25 | WSP-Gr. B | 15,5 | 140,6 | 0,56 | 1 Stück |
€328.50
|
|||
| 1 |
|
12240312 | 48 | 50 | 67,4 | 20 | WSP-Gr. A | 12 | 117,4 | 0,43 | 1 Stück |
€328.50
|
|||
| 64 |
|
12240361 | 246 | 70 | 295,2 | 40 | WSP-Gr. H | 61 | 365,2 | 2,18 | 1 Stück |
€546.00
|
|||
| 69 |
|
12240366 | 266 | 70 | 319,3 | 40 | WSP-Gr. H | 66 | 389,3 | 2,31 | 1 Stück |
€546.00
|
|||
| 22 |
|
12240322,5 | 90 | 56 | 119,8 | 25 | WSP-Gr. C | 22,5 | 175,8 | 0,79 | 1 Stück |
€353.50
|
|||
| 40 |
|
12240338 | 153 | 70 | 194,4 | 40 | WSP-Gr. F | 38 | 264,4 | 1,38 | 1 Stück |
€430.50
|
|||
| 14 |
|
12240318 | 72 | 56 | 96,6 | 25 | WSP-Gr. B | 18 | 152,6 | 0,64 | 1 Stück |
€341.50
|
|||
| 20 |
|
12240321 | 84 | 56 | 112,8 | 25 | WSP-Gr. C | 21 | 168,8 | 0,75 | 1 Stück |
€353.50
|
|||
| 7 |
|
12240314,5 | 58 | 56 | 78,5 | 25 | WSP-Gr. B | 14,5 | 134,5 | 0,52 | 1 Stück |
€328.50
|
|||
| 2 |
|
12240312,5 | 50 | 50 | 69,5 | 20 | WSP-Gr. A | 12,5 | 119,5 | 0,45 | 1 Stück |
€328.50
|
|||
| 15 |
|
12240318,5 | 74 | 56 | 99,7 | 25 | WSP-Gr. B | 18,5 | 155,7 | 0,65 | 1 Stück |
€353.50
|
|||
| 63 |
|
12240360 | 242 | 70 | 290,1 | 40 | WSP-Gr. H | 60 | 360,1 | 2,15 | 1 Stück |
€507.00
|
|||
| 11 |
|
12240316,5 | 66 | 56 | 89,6 | 25 | WSP-Gr. B | 16,5 | 145,6 | 0,6 | 1 Stück |
€341.50
|
