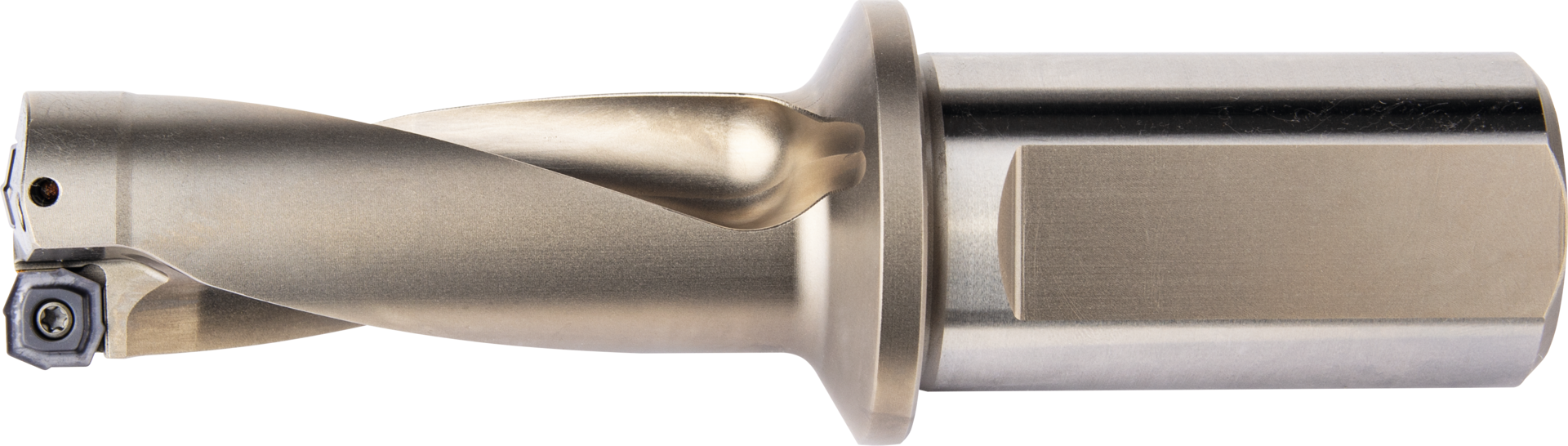

Wendeschneidplattenbohrer TopCut Four™ IK 2xD für WSP Gr. H D68mm
Compare
Lieferumfang:
- Wendeschneidplattenbohrer
- Spannschrauben
- Torx-Schlüssel
| Einsatz: | für stabile und instabile Bedingungen bei vielseitigen Bohranwendungen und Werkstückmaterialien, ohne Pilotbohrung, in allen handelsüblichen Werkzeugaufnahmen, auf BAZ und CNC-Maschinen |
|---|---|
| Einstellbarkeit: | Nein |
| IK: | mit Kühlschmierstoff-Austritt axial schräg |
| Norm: | Werksnorm |
| Schneidrichtung: | rechts |
| x D: | 2 |
Variants

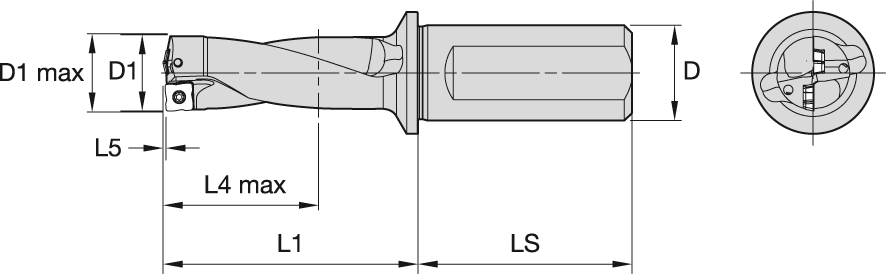

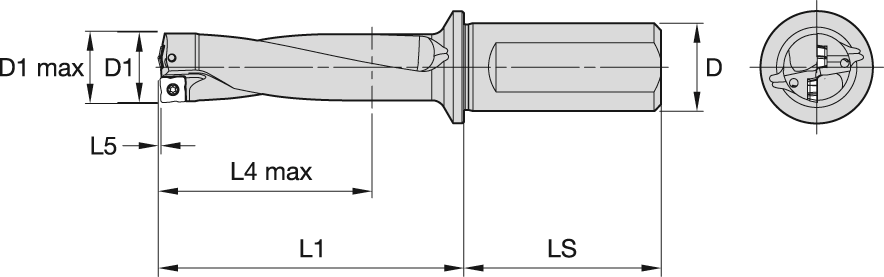

| Position | Code | L (mm) | D1 (mm) | D (mm) | L1 (mm) | Passend zu | L5 (mm) | LS (mm) | L4 max (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71 |
|
12240168 | 262,4 | 68 | 40 | 192,4 | WSP-Gr. H | 2,36 | 70 | 138 | 1 Stück |
€476.00
|
|||
| 21 |
|
12240122 | 129,8 | 22 | 25 | 73,8 | WSP-Gr. C | 0,78 | 56 | 44 | 1 Stück |
€307.00
|
|||
| 17 |
|
12240119,5 | 121,7 | 19,5 | 25 | 65,7 | WSP-Gr. C | 0,71 | 56 | 39 | 1 Stück |
€307.00
|
|||
| 37 |
|
12240136 | 182,3 | 36 | 40 | 112,3 | WSP-Gr. E | 1,27 | 70 | 73 | 1 Stück |
€327.50
|
|||
| 16 |
|
12240119 | 119,7 | 19 | 25 | 63,7 | WSP-Gr. C | 0,68 | 56 | 38 | 1 Stück |
€307.00
|
|||
| 40 |
|
12240138 | 188,4 | 38 | 40 | 118,4 | WSP-Gr. F | 1,38 | 70 | 77 | 1 Stück |
€374.00
|
|||
| 51 |
|
12240149 | 215,8 | 49 | 40 | 145,8 | WSP-Gr. G | 1,76 | 70 | 99 | 1 Stück |
€405.00
|
|||
| 18 |
|
12240120 | 122,7 | 20 | 25 | 66,7 | WSP-Gr. C | 0,72 | 56 | 40 | 1 Stück |
€307.00
|
|||
| 19 |
|
12240120,5 | 124,7 | 20,5 | 25 | 68,7 | WSP-Gr. C | 0,74 | 56 | 41 | 1 Stück |
€307.00
|
|||
| 67 |
|
12240164 | 251,3 | 64 | 40 | 181,3 | WSP-Gr. H | 2,26 | 70 | 130 | 1 Stück |
€476.00
|
|||
| 30 |
|
12240129 | 153 | 29 | 32 | 93 | WSP-Gr. D | 1,02 | 60 | 59 | 1 Stück |
€307.00
|
|||
| 3 |
|
12240112,7 | 95,9 | 12,7 | 20 | 45,9 | WSP-Gr. A | 0,46 | 50 | 25 | 1 Stück |
€285.50
|
|||
| 31 |
|
12240130 | 153,1 | 30 | 32 | 93,1 | WSP-Gr. E | 1,09 | 60 | 61 | 1 Stück |
€327.50
|
|||
| 24 |
|
12240124 | 132,9 | 24 | 25 | 76,9 | WSP-Gr. D | 0,87 | 56 | 48 | 1 Stück |
€307.00
|
|||
| 29 |
|
12240128 | 150 | 28 | 32 | 90 | WSP-Gr. D | 0,99 | 60 | 57 | 1 Stück |
€307.00
|
|||
| 55 |
|
12240152 | 223,8 | 52 | 40 | 153,8 | WSP-Gr. G | 1,84 | 70 | 105 | 1 Stück |
€405.00
|
|||
| 49 |
|
12240147 | 209,7 | 47 | 40 | 139,7 | WSP-Gr. G | 1,7 | 70 | 95 | 1 Stück |
€374.00
|
|||
| 12 |
|
12240117 | 113,6 | 17 | 25 | 57,6 | WSP-Gr. B | 0,61 | 56 | 34 | 1 Stück |
€297.00
|
|||
| 69 |
|
12240166 | 257,3 | 66 | 40 | 187,3 | WSP-Gr. H | 2,31 | 70 | 134 | 1 Stück |
€476.00
|
|||
| 52 |
|
12240150 | 217,8 | 50 | 40 | 147,8 | WSP-Gr. G | 1,79 | 70 | 101 | 1 Stück |
€405.00
|
|||
| 25 |
|
12240125 | 140,9 | 25 | 32 | 80,9 | WSP-Gr. D | 0,91 | 60 | 50 | 1 Stück |
€307.00
|
|||
| 43 |
|
12240141 | 196,5 | 41 | 40 | 126,5 | WSP-Gr. F | 1,48 | 70 | 83 | 1 Stück |
€374.00
|
|||
| 9 |
|
12240115,5 | 109,6 | 15,5 | 25 | 53,6 | WSP-Gr. B | 0,56 | 56 | 31 | 1 Stück |
€285.50
|
|||
| 4 |
|
12240113 | 96,5 | 13 | 20 | 46,5 | WSP-Gr. A | 0,47 | 50 | 26 | 1 Stück |
€285.50
|
|||
| 26 |
|
12240126 | 143,9 | 26 | 32 | 83,9 | WSP-Gr. D | 0,94 | 60 | 52 | 1 Stück |
€307.00
|
|||
| 44 |
|
12240142 | 199,5 | 42 | 40 | 129,5 | WSP-Gr. F | 1,51 | 70 | 85 | 1 Stück |
€374.00
|
|||
| 2 |
|
12240112,5 | 94,5 | 12,5 | 20 | 44,5 | WSP-Gr. A | 0,45 | 50 | 25 | 1 Stück |
€285.50
|
|||
| 38 |
|
12240137 | 185,3 | 37 | 40 | 115,3 | WSP-Gr. F | 1,35 | 70 | 75 | 1 Stück |
€374.00
|
|||
| 14 |
|
12240118 | 116,6 | 18 | 25 | 60,6 | WSP-Gr. B | 0,64 | 56 | 36 | 1 Stück |
€297.00
|
|||
| 66 |
|
12240163 | 249,2 | 63 | 40 | 179,2 | WSP-Gr. H | 2,23 | 70 | 128 | 1 Stück |
€476.00
|
|||
| 63 |
|
12240160 | 240,1 | 60 | 40 | 170,1 | WSP-Gr. H | 2,15 | 70 | 122 | 1 Stück |
€440.50
|
|||
| 57 |
|
12240154 | 229,9 | 54 | 40 | 159,9 | WSP-Gr. G | 1,89 | 70 | 109 | 1 Stück |
€405.00
|
|||
| 56 |
|
12240153 | 226,9 | 53 | 40 | 156,9 | WSP-Gr. G | 1,87 | 70 | 107 | 1 Stück |
€405.00
|
|||
| 65 |
|
12240162 | 246,2 | 62 | 40 | 176,2 | WSP-Gr. H | 2,2 | 70 | 126 | 1 Stück |
€476.00
|
|||
| 1 |
|
12240112 | 93,4 | 12 | 20 | 43,4 | WSP-Gr. A | 0,43 | 50 | 24 | 1 Stück |
€285.50
|
|||
| 11 |
|
12240116,5 | 112,6 | 16,5 | 25 | 56,6 | WSP-Gr. B | 0,6 | 56 | 33 | 1 Stück |
€297.00
|
|||
| 53 |
|
12240150,5 | 219,8 | 50,5 | 40 | 149,8 | WSP-Gr. G | 1,8 | 70 | 102 | 1 Stück |
€405.00
|
|||
| 39 |
|
12240137,5 | 186,4 | 37,5 | 40 | 116,4 | WSP-Gr. F | 1,36 | 70 | 76 | 1 Stück |
€374.00
|
|||
| 46 |
|
12240144 | 205,6 | 44 | 40 | 135,6 | WSP-Gr. F | 1,56 | 70 | 89 | 1 Stück |
€374.00
|
|||
| 61 |
|
12240158 | 235,1 | 58 | 40 | 165,1 | WSP-Gr. H | 2,09 | 70 | 118 | 1 Stück |
€440.50
|
|||
| 34 |
|
12240133 | 173,2 | 33 | 40 | 103,2 | WSP-Gr. E | 1,18 | 70 | 67 | 1 Stück |
€327.50
|
|||
| 22 |
|
12240122,5 | 130,8 | 22,5 | 25 | 74,8 | WSP-Gr. C | 0,79 | 56 | 45 | 1 Stück |
€307.00
|
|||
| 6 |
|
12240114 | 104,5 | 14 | 25 | 48,5 | WSP-Gr. B | 0,49 | 56 | 28 | 1 Stück |
€285.50
|
|||
| 70 |
|
12240167 | 259,3 | 67 | 40 | 189,3 | WSP-Gr. H | 2,33 | 70 | 136 | 1 Stück |
€476.00
|
|||
| 15 |
|
12240118,5 | 118,7 | 18,5 | 25 | 62,7 | WSP-Gr. B | 0,65 | 56 | 37 | 1 Stück |
€307.00
|
|||
| 45 |
|
12240143 | 202,5 | 43 | 40 | 132,5 | WSP-Gr. F | 1,53 | 70 | 87 | 1 Stück |
€374.00
|
|||
| 7 |
|
12240114,5 | 105,5 | 14,5 | 25 | 49,5 | WSP-Gr. B | 0,52 | 56 | 29 | 1 Stück |
€285.50
|
|||
| 28 |
|
12240127 | 147 | 27 | 32 | 87 | WSP-Gr. D | 0,97 | 60 | 55 | 1 Stück |
€307.00
|
|||
| 62 |
|
12240159 | 238,1 | 59 | 40 | 168,1 | WSP-Gr. H | 2,12 | 70 | 120 | 1 Stück |
€440.50
|
|||
| 20 |
|
12240121 | 126,8 | 21 | 25 | 70,8 | WSP-Gr. C | 0,75 | 56 | 42 | 1 Stück |
€307.00
|
|||
| 13 |
|
12240117,5 | 115,6 | 17,5 | 25 | 59,6 | WSP-Gr. B | 0,63 | 56 | 35 | 1 Stück |
€297.00
|
|||
| 10 |
|
12240116 | 110,6 | 16 | 25 | 54,6 | WSP-Gr. B | 0,58 | 56 | 32 | 1 Stück |
€285.50
|
|||
| 5 |
|
12240113,5 | 98,5 | 13,5 | 20 | 48,5 | WSP-Gr. A | 0,48 | 50 | 27 | 1 Stück |
€285.50
|
|||
| 68 |
|
12240165 | 254,3 | 65 | 40 | 184,3 | WSP-Gr. H | 2,28 | 70 | 132 | 1 Stück |
€476.00
|
|||
| 33 |
|
12240132 | 159,2 | 32 | 32 | 99,2 | WSP-Gr. E | 1,15 | 60 | 65 | 1 Stück |
€327.50
|
|||
| 8 |
|
12240115 | 107,5 | 15 | 25 | 51,5 | WSP-Gr. B | 0,55 | 56 | 30 | 1 Stück |
€285.50
|
|||
| 23 |
|
12240123 | 132,8 | 23 | 25 | 76,8 | WSP-Gr. C | 0,8 | 56 | 46 | 1 Stück |
€307.00
|
|||
| 48 |
|
12240146 | 206,7 | 46 | 40 | 136,7 | WSP-Gr. G | 1,67 | 70 | 93 | 1 Stück |
€374.00
|
|||
| 60 |
|
12240157 | 232,1 | 57 | 40 | 162,1 | WSP-Gr. H | 2,06 | 70 | 116 | 1 Stück |
€440.50
|
|||
| 35 |
|
12240134 | 176,2 | 34 | 40 | 106,2 | WSP-Gr. E | 1,21 | 70 | 69 | 1 Stück |
€327.50
|
|||
| 64 |
|
12240161 | 243,2 | 61 | 40 | 173,2 | WSP-Gr. H | 2,18 | 70 | 124 | 1 Stück |
€476.00
|
|||
| 42 |
|
12240140 | 193,4 | 40 | 40 | 123,4 | WSP-Gr. F | 1,45 | 70 | 81 | 1 Stück |
€374.00
|
|||
| 36 |
|
12240135 | 179,2 | 35 | 40 | 109,2 | WSP-Gr. E | 1,24 | 70 | 71 | 1 Stück |
€327.50
|
|||
| 41 |
|
12240139 | 191,4 | 39 | 40 | 121,4 | WSP-Gr. F | 1,41 | 70 | 79 | 1 Stück |
€374.00
|
|||
| 50 |
|
12240148 | 212,7 | 48 | 40 | 142,7 | WSP-Gr. G | 1,73 | 70 | 97 | 1 Stück |
€374.00
|
|||
| 54 |
|
12240151 | 220,8 | 51 | 40 | 150,8 | WSP-Gr. G | 1,81 | 70 | 103 | 1 Stück |
€405.00
|
|||
| 58 |
|
12240155 | 231,9 | 55 | 40 | 161,9 | WSP-Gr. G | 1,92 | 70 | 111 | 1 Stück |
€440.50
|
|||
| 59 |
|
12240156 | 234,9 | 56 | 40 | 164,9 | WSP-Gr. G | 1,94 | 70 | 113 | 1 Stück |
€440.50
|
|||
| 32 |
|
12240131 | 156,1 | 31 | 32 | 96,1 | WSP-Gr. E | 1,12 | 60 | 63 | 1 Stück |
€327.50
|
|||
| 47 |
|
12240145 | 208,6 | 45 | 40 | 138,6 | WSP-Gr. F | 1,59 | 70 | 91 | 1 Stück |
€374.00
|
|||
| 27 |
|
12240126,5 | 146 | 26,5 | 32 | 86 | WSP-Gr. D | 0,95 | 60 | 54 | 1 Stück |
€307.00
|
