Wendeplattensenker Z2 DIN1835-B für WSP CC.T 1204 D44mm
Compare
| Einsatz: | in Weldon-Zylinderschaftaufnahmen oder Spannzangenfuttern, universell auch auf Drehmaschinen |
|---|---|
| Einstellbarkeit: | Nein |
| IK: | mit Kühlschmierstoff-Austritt axial |
| Norm: | Werksnorm/DIN 1835-B |
| Schneidrichtung: | rechts |
| Z: | 2 |
Variants

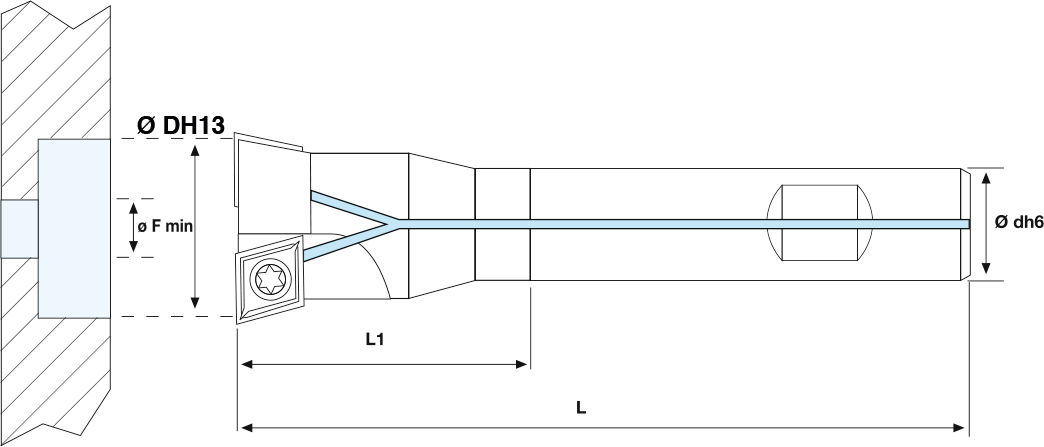

| Position | Code | Passend zu | L1 (mm) | L (mm) | d (mm) | F min (mm) | DH13 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31 |
|
14800244 | WSP CC.T 1204 | 70 | 150 | 25 | 24 | 44 | 1 Stück |
€351.20
|
|||
| 30 |
|
14800243 | WSP CC.T 1204 | 70 | 150 | 25 | 24 | 43 | 1 Stück |
€351.20
|
|||
| 32 |
|
14800245 | WSP CC.T 1204 | 70 | 150 | 25 | 24 | 45 | 1 Stück |
€351.20
|
|||
| 24 |
|
14800237 | WSP CC.T 09T3 | 60 | 140 | 25 | 19 | 37 | 1 Stück |
€273.00
|
|||
| 35 |
|
14800248 | WSP CC.T 1204 | 70 | 150 | 25 | 24 | 48 | 1 Stück |
€362.90
|
|||
| 3 |
|
14800217 | WSP CC.T 0602 | 32 | 94 | 16 | 6 | 17 | 1 Stück |
€188.90
|
|||
| 33 |
|
14800246 | WSP CC.T 1204 | 70 | 150 | 25 | 24 | 46 | 1 Stück |
€362.90
|
|||
| 6 |
|
14800219 | WSP CC.T 0602 | 41 | 100 | 16 | 8 | 19 | 1 Stück |
€194.90
|
|||
| 34 |
|
14800247 | WSP CC.T 1204 | 70 | 150 | 25 | 24 | 47 | 1 Stück |
€362.90
|
|||
| 23 |
|
14800236 | WSP CC.T 09T3 | 60 | 140 | 25 | 18 | 36 | 1 Stück |
€273.00
|
|||
| 7 |
|
14800220 | WSP CC.T 0602 | 41 | 102 | 16 | 9 | 20 | 1 Stück |
€221.40
|
|||
| 11 |
|
14800224 | WSP CC.T 0602 | 41 | 115 | 16 | 13 | 24 | 1 Stück |
€234.60
|
|||
| 22 |
|
14800235 | WSP CC.T 09T3 | 60 | 140 | 25 | 17 | 35 | 1 Stück |
€273.00
|
|||
| 10 |
|
14800223 | WSP CC.T 0602 | 41 | 112 | 16 | 12 | 23 | 1 Stück |
€234.60
|
|||
| 27 |
|
14800240 | WSP CC.T 09T3 | 60 | 140 | 25 | 22 | 40 | 1 Stück |
€298.00
|
|||
| 2 |
|
14800216 | WSP CC.T 0602 | 30 | 92 | 12 | 5 | 16 | 1 Stück |
€188.90
|
|||
| 1 |
|
14800215 | WSP CC.T 0602 | 30 | 92 | 12 | 5 | 15 | 1 Stück |
€188.90
|
|||
| 4 |
|
14800217,5 | WSP CC.T 0602 | 40 | 96 | 16 | 6,5 | 17,5 | 1 Stück |
€194.90
|
|||
| 26 |
|
14800239 | WSP CC.T 09T3 | 60 | 140 | 25 | 21 | 39 | 1 Stück |
€298.00
|
|||
| 28 |
|
14800241 | WSP CC.T 09T3 | 60 | 140 | 25 | 23 | 41 | 1 Stück |
€298.00
|
|||
| 25 |
|
14800238 | WSP CC.T 09T3 | 60 | 140 | 25 | 20 | 38 | 1 Stück |
€273.00
|
|||
| 14 |
|
14800227 | WSP CC.T 09T3 | 55 | 128 | 20 | 10 | 27 | 1 Stück |
€259.70
|
|||
| 17 |
|
14800230 | WSP CC.T 09T3 | 55 | 134 | 20 | 13 | 30 | 1 Stück |
€273.00
|
|||
| 16 |
|
14800229 | WSP CC.T 09T3 | 55 | 132 | 20 | 12 | 29 | 1 Stück |
€273.00
|
|||
| 15 |
|
14800228 | WSP CC.T 09T3 | 55 | 130 | 20 | 11 | 28 | 1 Stück |
€259.70
|
|||
| 9 |
|
14800222 | WSP CC.T 0602 | 41 | 110 | 16 | 11 | 22 | 1 Stück |
€234.60
|
|||
| 5 |
|
14800218 | WSP CC.T 0602 | 41 | 97 | 16 | 7 | 18 | 1 Stück |
€194.90
|
|||
| 8 |
|
14800221 | WSP CC.T 0602 | 41 | 105 | 16 | 10 | 21 | 1 Stück |
€221.40
|
|||
| 18 |
|
14800231 | WSP CC.T 09T3 | 55 | 136 | 20 | 14 | 31 | 1 Stück |
€273.00
|
|||
| 21 |
|
14800234 | WSP CC.T 09T3 | 60 | 140 | 25 | 16 | 34 | 1 Stück |
€273.00
|
|||
| 13 |
|
14800226 | WSP CC.T 09T3 | 55 | 125 | 20 | 9 | 26 | 1 Stück |
€259.70
|
|||
| 19 |
|
14800232 | WSP CC.T 09T3 | 55 | 138 | 20 | 15 | 32 | 1 Stück |
€273.00
|
|||
| 29 |
|
14800242 | WSP CC.T 09T3 | 60 | 140 | 25 | 24 | 42 | 1 Stück |
€298.00
|
|||
| 20 |
|
14800233 | WSP CC.T 09T3 | 55 | 140 | 20 | 16 | 33 | 1 Stück |
€273.00
|
|||
| 12 |
|
14800225 | WSP CC.T 09T3 | 40 | 120 | 16 | 8 | 25 | 1 Stück |
€259.70
|
