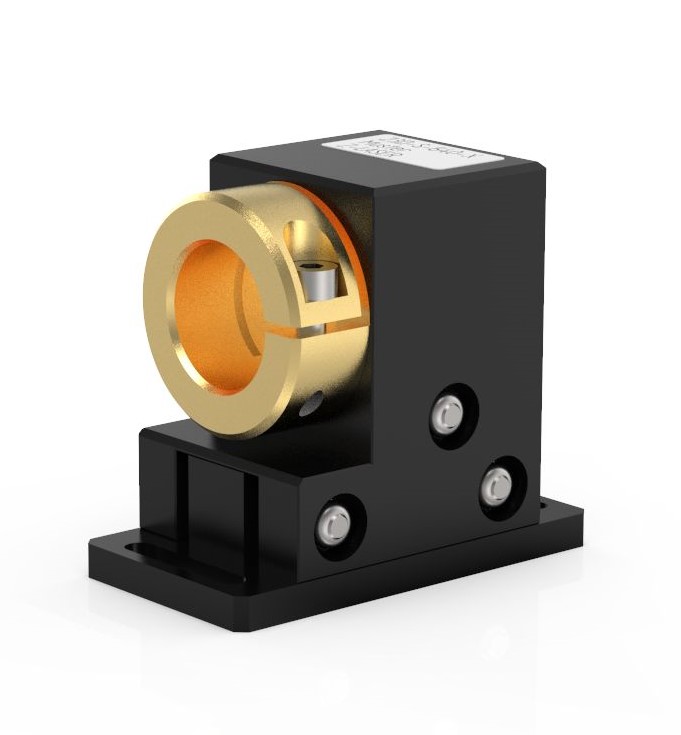

Precision mount for lasers with ø20mm housing diameter H6-20

Product number: XZL100180601

€380.80*

Prices incl. VAT plus shipping costs

ordered

piece
Remember
Print product details
Compare Compare
Downloads
datasheet
Material: Aluminium, black anodized
Dimensions (WxHxD): 35 x 57 x 65mm
Functions:
- Roll laser around the longitudinal axis (360°)
- Move laser parallel to the transverse axis (±4.5mm)
- Yaw laser around vertical axis (±5°)

Zuberhör

Line laser, red, battery operated Z-LASER Z3AT-635-lg90
XZLZA0000103 - €238.00
Line laser, red, battery operated Z-LASER Z3AT-635-lg90
Battery operated line laser for mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 1M  - 12 months manufacturer's warranty

per Piece
€238.00
Compare Compare
Line laser, red, battery operated Z-LASER Z5AT-635-lg90
XZLZA0000104 - €261.80
Line laser, red, battery operated Z-LASER Z5AT-635-lg90
Battery operated line laser for mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 1M  - 12 months manufacturer's warranty

per piece
€261.80
Compare Compare
Dot laser, red, battery operated Z-LASER Z1M18B-F-635-pe
XZLZA0000124 - €214.20
Dot laser, red, battery operated Z-LASER Z1M18B-F-635-pe
Battery operated dot laser for mobile positioning applications (Pointer)  - Output power: <1mW  - Wavelength: 635nm (red)  - Focus: 2.000mm, fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 2  - 12 months manufacturer's warranty

per piece
€214.20
Compare Compare
Line laser, green, free focusable Z-LASER Z40M18B3-F-520-lg90
XZLZM18GF501 - €773.50
Line laser, green, free focusable Z-LASER Z40M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 40mW  - Wavelength: 520nm (green)  - up to 20m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2M  - 24 months manufacturer's warranty

per piece
€773.50
Compare Compare
Line laser, green, free focusable Z-LASER Z5M18B3-F-520-lg90
XZLZM18GF510 - €571.20
Line laser, green, free focusable Z-LASER Z5M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 520nm (green)  - up to 4m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€571.20
Compare Compare
Line laser, green, free focusable Z-LASER Z20M18B3-F-520-lg90
XZLZM18GF530 - €702.10
Line laser, green, free focusable Z-LASER Z20M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 20mW  - Wavelength: 520nm (green)  - up to 15m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2M  - 24 months manufacturer's warranty

per piece
€702.10
Compare Compare
Line laser, green, free focusable Z-LASER Z10M18B3-F-520-lg90
XZLZM18GF565 - €630.70
Line laser, green, free focusable Z-LASER Z10M18B3-F-520-lg90
Linienlaser für stationäre Positionieranwendungen- Ausgangsleistung: 10mW- Wellenlänge: 520nm (grün)- bis zu 8m Linienlänge- Fokusabstand: frei einstellbar- Versorgungsspannung: 5-28VDC- Anschluss: M12x1 Rundsteckverbinder, 4polig - Abmessungen: ø20 x 108mm- Gehäuse: Messing verchromt- Betriebstemperatur: -10°C bis +50°C- Schutzart: IP67 - Laserklasse (EN 60825-1): 2M - 24 Monate Herstellergarantie

per piece
€630.70
Compare Compare
Line laser, red Z-LASER Z5M18B-635-lg90
XZLZM18R0010 - €321.30
Line laser, red Z-LASER Z5M18B-635-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€321.30
Compare Compare
Line laser, red Z-LASER Z10M18B-638-lg90
XZLZM18R0011 - €416.50
Line laser, red Z-LASER Z10M18B-638-lg90
Line laser for non-mobile positioning applications  - Output power: 10mW  - Wavelength: 638nm (red)  - ca. 3-5m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€416.50
Compare Compare
Line laser, red Z-LASER Z3M18B-635-lg90
XZLZM18R0021 - €321.30
Line laser, red Z-LASER Z3M18B-635-lg90
Line laser for non-mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€321.30
Compare Compare
Line laser, red, free focusable Z-LASER Z3M18B-F-635-lg90
XZLZM18RF020 - €428.40
Line laser, red, free focusable Z-LASER Z3M18B-F-635-lg90
Line laser for non-mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€428.40
Compare Compare
Line laser, red, free focusable Z-LASER Z10M18B-F-638-lg90
XZLZM18RF022 - €523.60
Line laser, red, free focusable Z-LASER Z10M18B-F-638-lg90
Line laser for non-mobile positioning applications  - Output power: 10mW  - Wavelength: 638nm (red)  - ca. 3-5m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€523.60
Compare Compare
Line laser, red, free focusable Z-LASER Z5M18B-F-635-lg90
XZLZM18RF027 - €428.40
Line laser, red, free focusable Z-LASER Z5M18B-F-635-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€428.40
Compare Compare
Dot laser, red, free focusable Z-LASER Z1M18B-F-635-pe
XZLZM18RF088 - €368.90
Dot laser, red, free focusable Z-LASER Z1M18B-F-635-pe
Dot laser (Pointer) for non-mobile positioning applications  - Output power: <1mW  - Wavelength: 635nm (red)  - Projection: dot, elliptical  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2  - 24 months manufacturer's warranty

per piece
€368.90
Compare Compare

Ähnliche Produkte

Precision mount for lasers with ø20mm housing diameter H8-20
XZL100180701 - €380.80
Precision mount for lasers with ø20mm housing diameter H8-20
Material: Aluminium, black anodized Dimensions (WxHxD): 35 x 77 x 65mm Functions: - Roll laser around the longitudinal axis (360°) - Pitch laser around the transverse axis - Move laser parallel to the transverse axis (±4.5mm) - Yaw laser around vertical axis (±5°)

per piece
€380.80
Compare Compare
Rotatable block holder for lasers with ø20mm housing diameter H0-20-20 bracket
XZL100182200 - €53.55
Rotatable block holder for lasers with ø20mm housing diameter H0-20-20 bracket
Material: Aluminium, black anodized Functions: - Roll laser around the longitudinal axis (360°) - Pitch the laser around the transverse axis - Move laser parallel to the transverse axis - Yaw laser around the vertical axis

per piece
€53.55
Compare Compare
Holder for lasers with ø20mm housing diameter, aluminum H2-20 bracket
XZLH220 - €59.50
Holder for lasers with ø20mm housing diameter, aluminum H2-20 bracket
To be mounted on a flat surface, Functions: roll, move parallel and tilt

per piece
€59.50
Compare Compare
