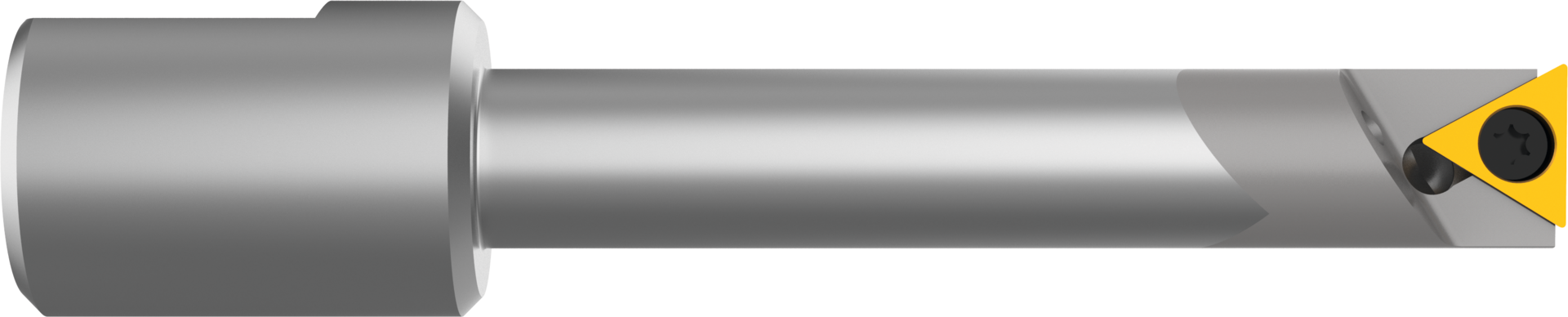

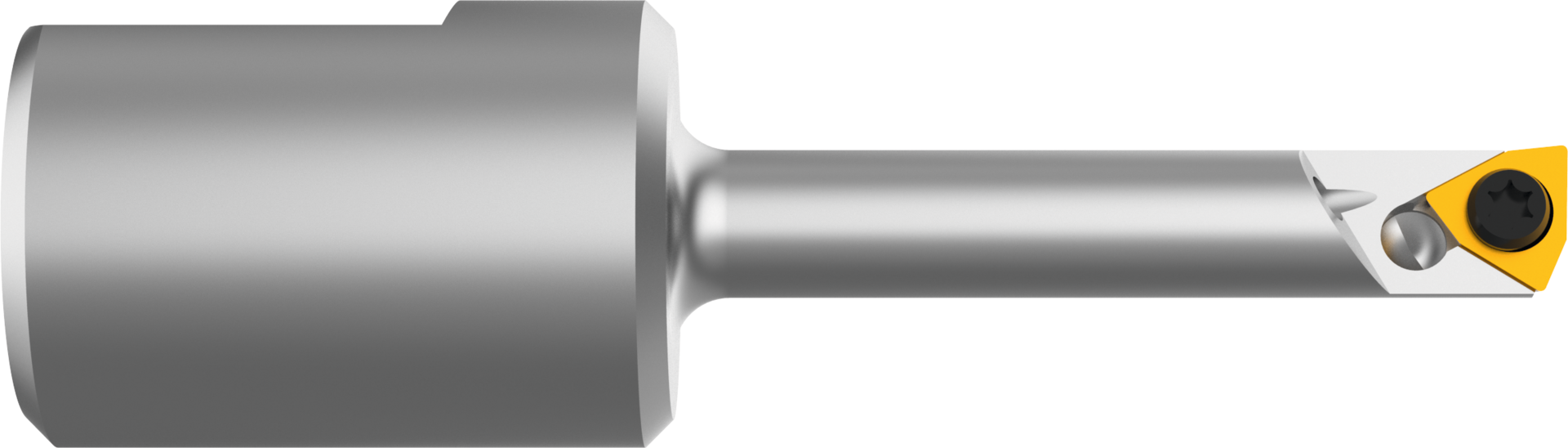

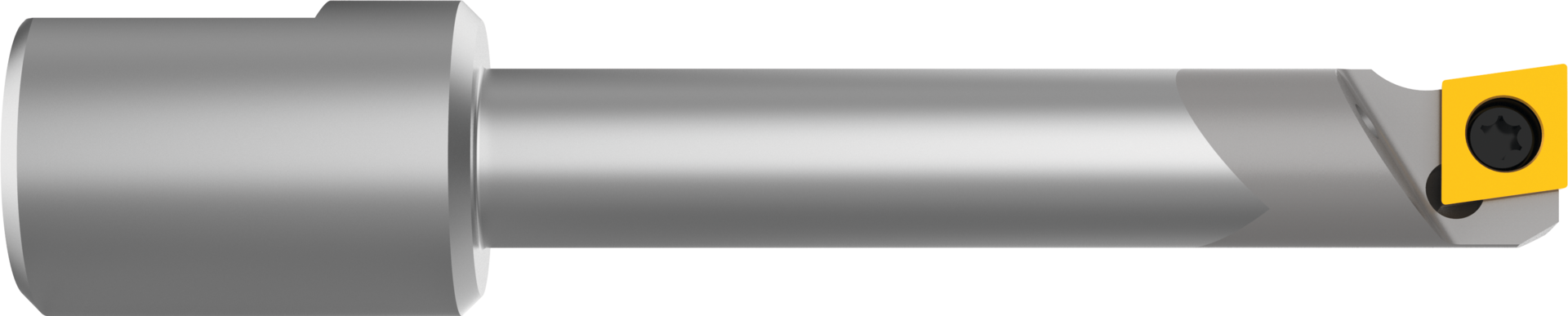

Klemmhalter Ø6-20mm HM für CC..0602.. A12-14 x1=70
Compare
| IK: | mit Kühlschmierstoff-Austritt axial |
|---|---|
| Material: | hm |

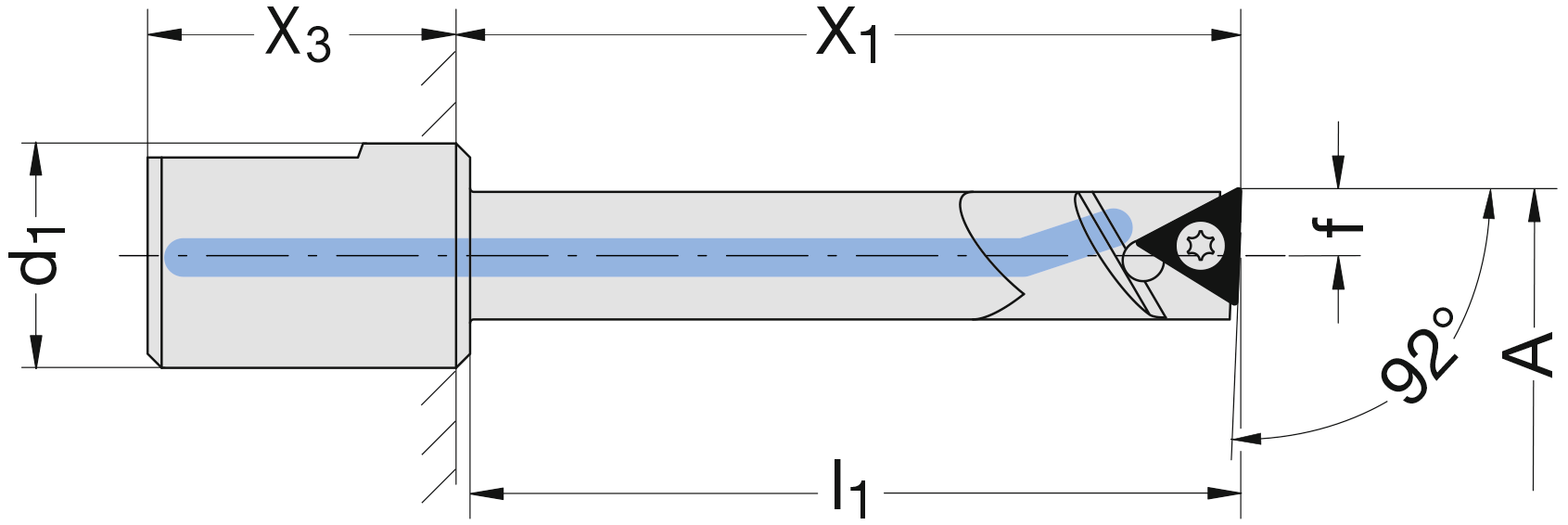

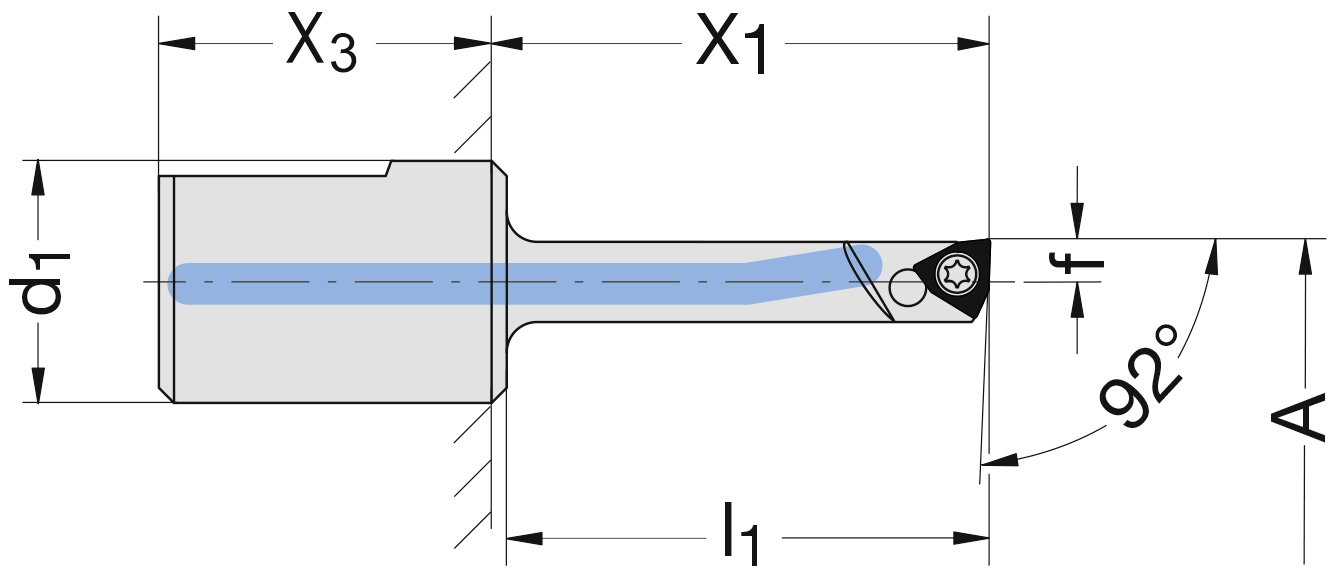

| d1 (mm): | 16 |
| x3 (mm): | 23 |
Variants
| Position | Code | x1 (mm) | l1 (mm) | Passend zu | A (mm) | f (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 |
|
1244585 | 70 | 67 | WSP CC..0602.. | 12 - 14 | 5,8 | 1 Stück |
€553.35
|
|||
| 3 |
|
124453 | 55 | 52 | WSP TO.. 0802.. | 10 - 12 | 4,8 | 1 Stück |
€502.18
|
|||
| 7 |
|
1244587 | 75 | 72 | WSP CC..0602.. | 14 - 16 | 6,8 | 1 Stück |
€604.52
|
|||
| 1 |
|
124451 | 32 | 29 | WSP WB.. 0201.. | 6 - 8 | 2,8 | 1 Stück |
€364.14
|
|||
| 7 |
|
124457 | 75 | 72 | WSP TO.. 0802.. | 14 - 16 | 6,8 | 1 Stück |
€553.35
|
|||
| 10 |
|
1244510 | 120 | 117 | WSP TO.. 0802.. | 16 - 20 | 7,8 | 1 Stück |
€821.10
|
|||
| 8 |
|
124458 | 100 | 97 | WSP TO.. 0802.. | 14 - 16 | 6,8 | 1 Stück |
€681.87
|
|||
| 2 |
|
124452 | 45 | 42 | WSP WB.. 0201.. | 8 - 10 | 3,8 | 1 Stück |
€386.75
|
|||
| 9 |
|
124459 | 90 | 87 | WSP TO.. 0802.. | 16 - 20 | 7,8 | 1 Stück |
€694.96
|
|||
| 10 |
|
12445810 | 120 | 117 | WSP CC..0602.. | 16 - 20 | 7,8 | 1 Stück |
€821.10
|
|||
| 5 |
|
124455 | 70 | 67 | WSP TO.. 0802.. | 12 - 14 | 5,8 | 1 Stück |
€553.35
|
|||
| 6 |
|
1244586 | 90 | 87 | WSP CC..0602.. | 12 - 14 | 5,8 | 1 Stück |
€629.51
|
|||
| 9 |
|
1244589 | 90 | 87 | WSP CC..0602.. | 16 - 20 | 7,8 | 1 Stück |
€694.96
|
|||
| 8 |
|
1244588 | 100 | 97 | WSP CC..0602.. | 14 - 16 | 6,8 | 1 Stück |
€724.71
|
|||
| 4 |
|
1244584 | 75 | 72 | WSP CC..0602.. | 10 - 12 | 4,8 | 1 Stück |
€571.20
|
|||
| 3 |
|
1244583 | 55 | 52 | WSP CC..0602.. | 10 - 12 | 4,8 | 1 Stück |
€534.31
|
|||
| 4 |
|
124454 | 75 | 72 | WSP TO.. 0802.. | 10 - 12 | 4,8 | 1 Stück |
€571.20
|
|||
| 6 |
|
124456 | 90 | 87 | WSP TO.. 0802.. | 12 - 14 | 5,8 | 1 Stück |
€629.51
|
