Hochleistungsreibahle VHM HR500D H7 IK TiAlN Sackloch WN D11mm
Compare
| Ausführung: | Sackloch |
|---|---|
| Beschichtung: | TiAlN |
| Drallrichtung: | rechts |
| Einsatz: | erzeugt sehr hohe Bohrungsqualitäten mit höchsten Schnittwerten bei höchster Prozesssicherheit und erheblicher Einsparung von Prozesskosten, der h6-gefertigte Schaft bringt den optimalen Rundlauf beim Einsatz im Hydrodehnspannfutter oder Schrumpffutter |
| Einstellbarkeit: | Nein |
| Form des Schaftes: | Zylinder |
| IK: | mit Kühlschmierstoff-Austritt axial |
| Material: | VHM |
| Norm: | Werksnorm |
| Schneidrichtung: | rechts |
| Tol-: | 0/5μm |
Variants

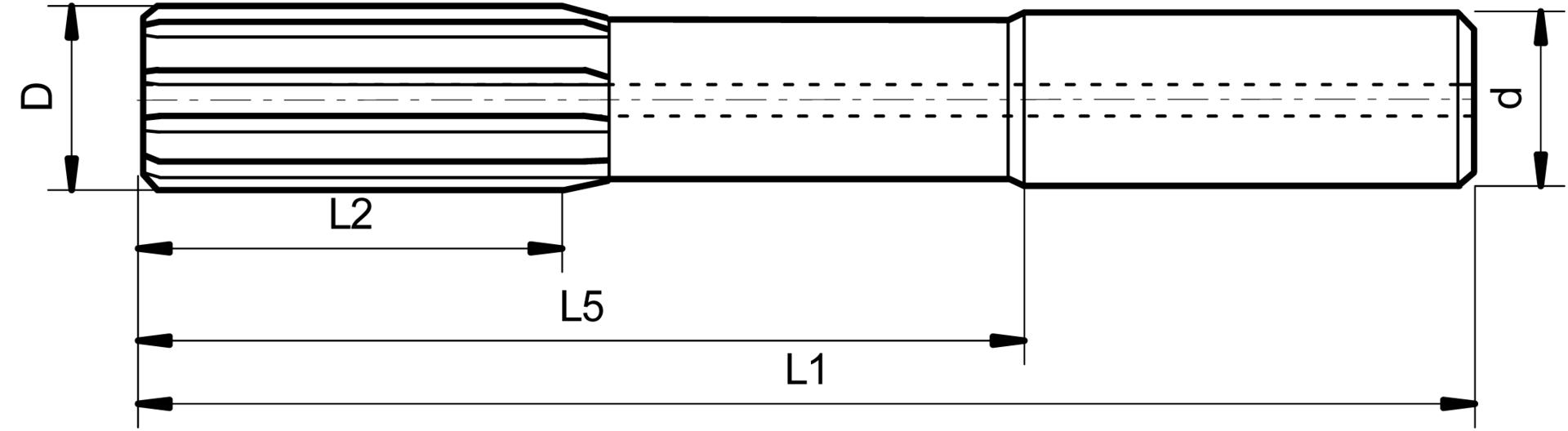

| Position | Code | D (mm) | L1 (mm) | Z | L5 (mm) | d (mm) | L2 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 53 |
|
1315211 | 11 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€254.40
|
|||
| 61 |
|
1315212,02 | 12,02 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€269.90
|
|||
| 40 |
|
131529,00 | 9 | 101 | 6 | 61 | 10 | 19 | 1 piece |
€158.40
|
|||
| 19 |
|
131525,97 | 5,97 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€139.50
|
|||
| 15 |
|
131525,01 | 5,01 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€133.90
|
|||
| 43 |
|
131529,97 | 9,97 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€205.30
|
|||
| 20 |
|
131525,98 | 5,98 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€139.50
|
|||
| 39 |
|
131528,5 | 8,5 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€168.50
|
|||
| 33 |
|
131527,99 | 7,99 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€146.20
|
|||
| 63 |
|
1315213 | 13 | 130 | 6 | 85 | 14 | 22 | 1 Stück |
€281.10
|
|||
| 6 |
|
131524,01 | 4,01 | 68 | 4 | 40 | 4 | 12 | 1 Stück |
€130.50
|
|||
| 57 |
|
1315211,99 | 11,99 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€269.90
|
|||
| 66 |
|
1315216 | 16 | 150 | 6 | 102 | 16 | 22 | 1 Stück |
€296.80
|
|||
| 25 |
|
131526,02 | 6,02 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€139.50
|
|||
| 52 |
|
1315211,00 | 11 | 130 | 6 | 85 | 12 | 19 | 1 piece |
€254.40
|
|||
| 45 |
|
131529,99 | 9,99 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€205.30
|
|||
| 65 |
|
1315215 | 15 | 150 | 6 | 102 | 16 | 22 | 1 Stück |
€290.00
|
|||
| 9 |
|
131524,5 | 4,5 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€133.90
|
|||
| 31 |
|
131527,97 | 7,97 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€146.20
|
|||
| 49 |
|
1315210,02 | 10,02 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€205.30
|
|||
| 29 |
|
131527 | 7 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€140.70
|
|||
| 41 |
|
131529 | 9 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€158.40
|
|||
| 7 |
|
131524,02 | 4,02 | 68 | 4 | 40 | 4 | 12 | 1 Stück |
€130.50
|
|||
| 23 |
|
131526 | 6 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€129.50
|
|||
| 13 |
|
131525,00 | 5 | 76 | 4 | 40 | 6 | 12 | 1 piece |
€124.90
|
|||
| 37 |
|
131528,02 | 8,02 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€146.20
|
|||
| 3 |
|
131523,99 | 3,99 | 68 | 4 | 40 | 4 | 12 | 1 Stück |
€130.50
|
|||
| 30 |
|
131527,5 | 7,5 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€146.20
|
|||
| 11 |
|
131524,98 | 4,98 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€133.90
|
|||
| 2 |
|
131523,98 | 3,98 | 68 | 4 | 40 | 4 | 12 | 1 Stück |
€130.50
|
|||
| 48 |
|
1315210,01 | 10,01 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€205.30
|
|||
| 62 |
|
1315212,03 | 12,03 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€269.90
|
|||
| 35 |
|
131528 | 8 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€136.10
|
|||
| 1 |
|
131523,97 | 3,97 | 68 | 4 | 40 | 4 | 12 | 1 Stück |
€130.50
|
|||
| 34 |
|
131528,00 | 8 | 101 | 6 | 65 | 8 | 16 | 1 piece |
€136.10
|
|||
| 70 |
|
1315220 | 20 | 150 | 6 | 100 | 20 | 25 | 1 Stück |
€370.30
|
|||
| 24 |
|
131526,01 | 6,01 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€139.50
|
|||
| 55 |
|
1315211,97 | 11,97 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€269.90
|
|||
| 56 |
|
1315211,98 | 11,98 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€269.90
|
|||
| 59 |
|
1315212 | 12 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€261.10
|
|||
| 68 |
|
1315218 | 18 | 150 | 6 | 102 | 18 | 25 | 1 Stück |
€345.90
|
|||
| 54 |
|
1315211,5 | 11,5 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€269.90
|
|||
| 38 |
|
131528,03 | 8,03 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€146.20
|
|||
| 18 |
|
131525,5 | 5,5 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€139.50
|
|||
| 64 |
|
1315214 | 14 | 130 | 6 | 85 | 14 | 22 | 1 Stück |
€290.00
|
|||
| 32 |
|
131527,98 | 7,98 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€146.20
|
|||
| 47 |
|
1315210 | 10 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€196.40
|
|||
| 26 |
|
131526,03 | 6,03 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€139.50
|
|||
| 28 |
|
131527,00 | 7 | 101 | 6 | 65 | 8 | 16 | 1 piece |
€140.70
|
|||
| 16 |
|
131525,02 | 5,02 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€133.90
|
|||
| 8 |
|
131524,03 | 4,03 | 68 | 4 | 40 | 4 | 12 | 1 Stück |
€130.50
|
|||
| 69 |
|
1315219 | 19 | 150 | 6 | 100 | 20 | 25 | 1 Stück |
€345.90
|
|||
| 42 |
|
131529,5 | 9,5 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€205.30
|
|||
| 21 |
|
131525,99 | 5,99 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€139.50
|
|||
| 36 |
|
131528,01 | 8,01 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€146.20
|
|||
| 5 |
|
131524 | 4 | 68 | 4 | 40 | 4 | 12 | 1 Stück |
€121.70
|
|||
| 4 |
|
131524,00 | 4 | 68 | 4 | 40 | 4 | 12 | 1 piece |
€121.70
|
|||
| 46 |
|
1315210,00 | 10 | 101 | 6 | 61 | 10 | 19 | 1 piece |
€196.40
|
|||
| 67 |
|
1315217 | 17 | 150 | 6 | 102 | 18 | 25 | 1 Stück |
€296.80
|
|||
| 51 |
|
1315210,5 | 10,5 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€263.30
|
|||
| 58 |
|
1315212,00 | 12 | 130 | 6 | 85 | 12 | 19 | 1 piece |
€261.10
|
|||
| 22 |
|
131526,00 | 6 | 76 | 4 | 40 | 6 | 12 | 1 piece |
€129.50
|
|||
| 60 |
|
1315212,01 | 12,01 | 130 | 6 | 85 | 12 | 19 | 1 Stück |
€269.90
|
|||
| 50 |
|
1315210,03 | 10,03 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€205.30
|
|||
| 17 |
|
131525,03 | 5,03 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€133.90
|
|||
| 12 |
|
131524,99 | 4,99 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€133.90
|
|||
| 44 |
|
131529,98 | 9,98 | 101 | 6 | 61 | 10 | 19 | 1 Stück |
€205.30
|
|||
| 27 |
|
131526,5 | 6,5 | 101 | 6 | 65 | 8 | 16 | 1 Stück |
€148.40
|
|||
| 14 |
|
131525 | 5 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€124.90
|
|||
| 10 |
|
131524,97 | 4,97 | 76 | 4 | 40 | 6 | 12 | 1 Stück |
€133.90
|
