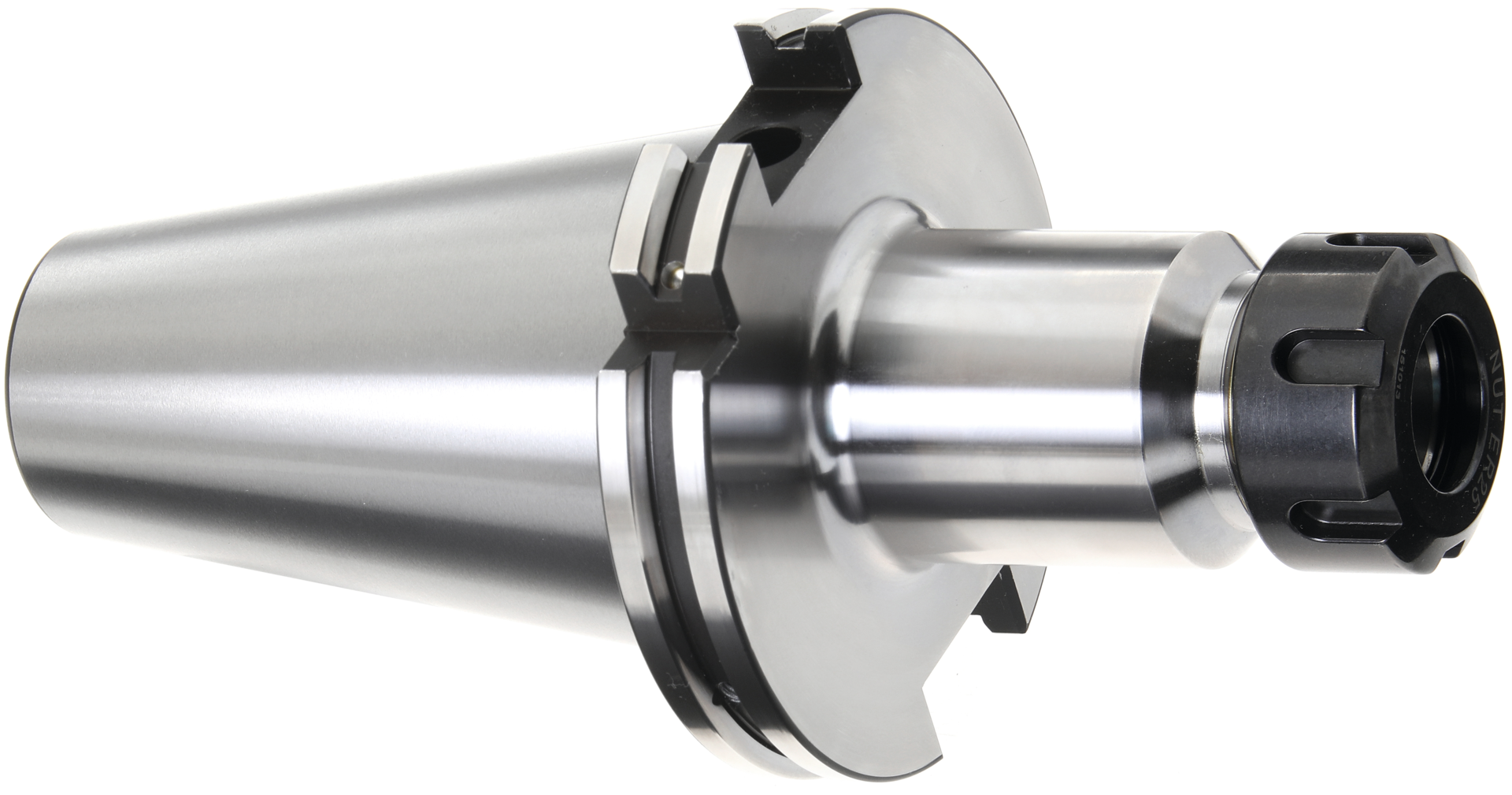

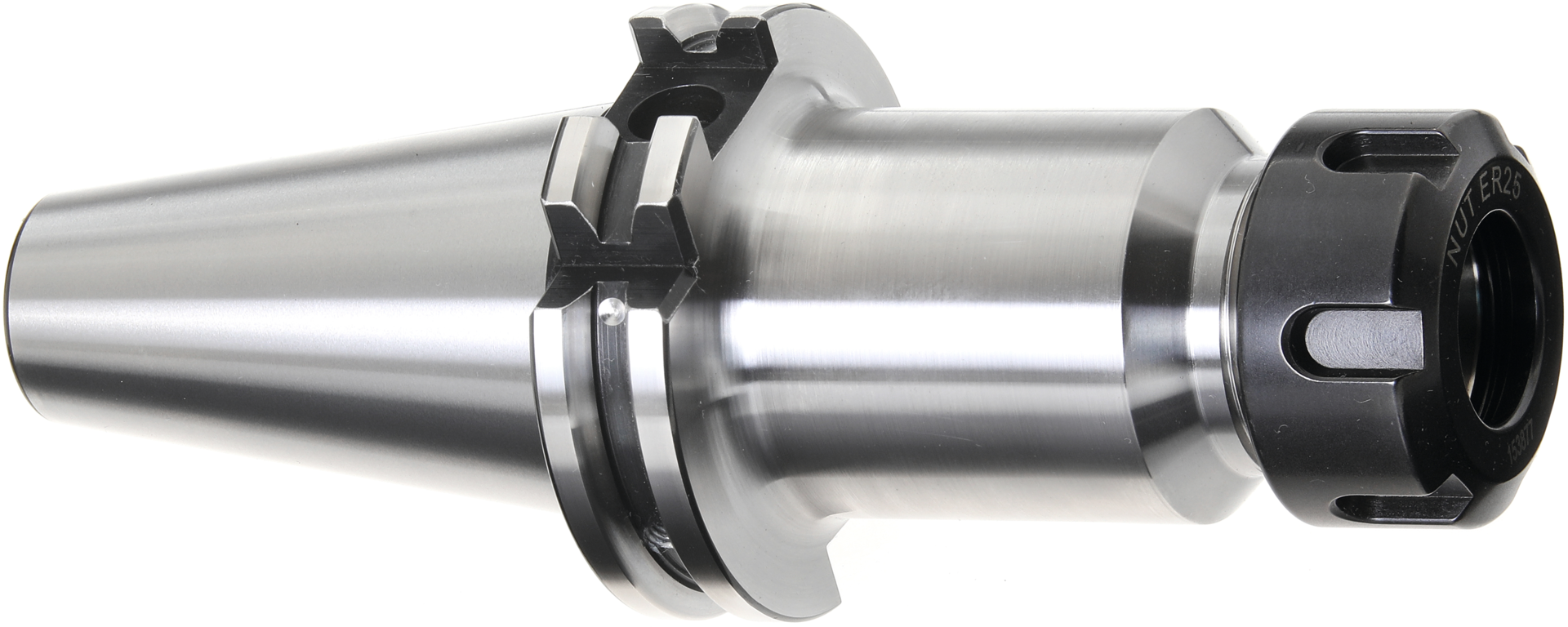

Spannzangenfutter SK40 DIN69871 Form AD/B ER16 L100mm
Compare
Lieferumfang:
- mit Spannmutter
| Einsatz: | zum Spannen von Werkzeugen mit Zylinderschaft in Spannzangen |
|---|---|
| Form: | AD/B |
| IK: | ja |
| Norm: | DIN 69871/DIN 6499/ISO 7388-1 |
| Wuchtgüte: | G2,5 25000 |
Variants

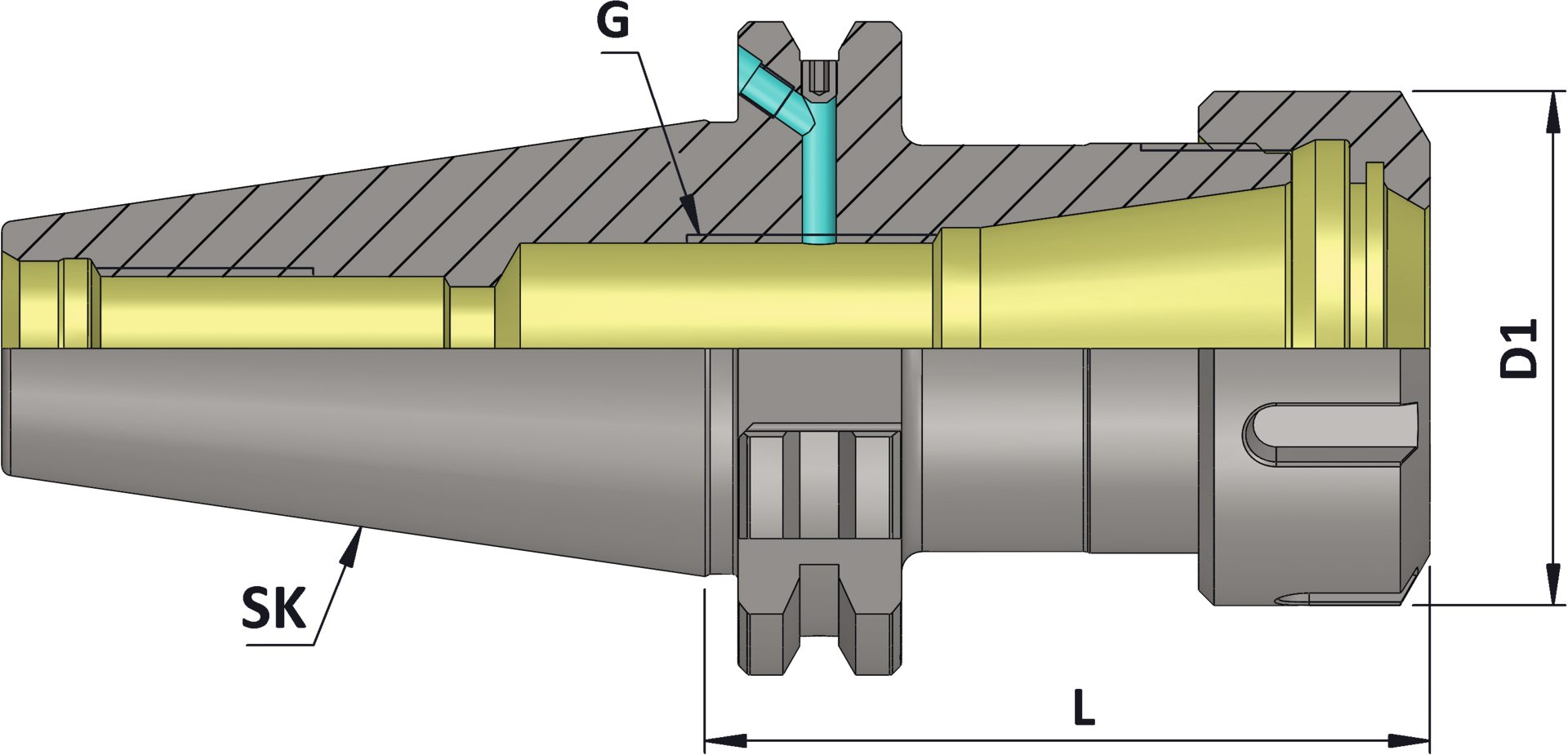

| Position | Code | ER | D1 (mm) | Aufnahme | L (mm) | Aufnahme | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 |
|
2341140X70 | 40 | 63 | SK 40 | 70 | - | 1 Stück |
€93.89
|
|||
| 2 |
|
23414616X100 | 16 | 32 | SK 50 | 100 | Zylinder | 1 Stück |
€146.55
|
|||
| 15 |
|
23414640X160 | 40 | 63 | SK 50 | 160 | Zylinder | 1 Stück |
€192.66
|
|||
| 8 |
|
23414625X200 | 25 | 42 | SK 50 | 200 | Zylinder | 1 Stück |
€227.71
|
|||
| 16 |
|
23414640X200 | 40 | 63 | SK 50 | 200 | Zylinder | 1 Stück |
€248.41
|
|||
| 6 |
|
2341116X160 | 16 | 32 | SK 40 | 160 | - | 1 Stück |
€155.89
|
|||
| 13 |
|
2341132X100 | 32 | 50 | SK 40 | 100 | - | 1 Stück |
€111.56
|
|||
| 3 |
|
23414616X160 | 16 | 32 | SK 50 | 160 | Zylinder | 1 Stück |
€187.84
|
|||
| 9 |
|
2341125X100 | 25 | 42 | SK 40 | 100 | - | 1 Stück |
€111.56
|
|||
| 4 |
|
2341116X70 | 16 | 32 | SK 40 | 70 | - | 1 Stück |
€86.81
|
|||
| 5 |
|
2341116X100 | 16 | 32 | SK 40 | 100 | - | 1 Stück |
€102.70
|
|||
| 12 |
|
2341132X70 | 32 | 50 | SK 40 | 70 | - | 1 Stück |
€88.66
|
|||
| 6 |
|
23414625X100 | 25 | 42 | SK 50 | 100 | Zylinder | 1 Stück |
€146.55
|
|||
| 15 |
|
2341132X200 | 32 | 50 | SK 40 | 200 | - | 1 Stück |
€223.13
|
|||
| 4 |
|
23414616X200 | 16 | 32 | SK 50 | 200 | Zylinder | 1 Stück |
€227.71
|
|||
| 1 |
|
23414616X70 | 16 | 32 | SK 50 | 70 | Zylinder | 1 Stück |
€117.87
|
|||
| 11 |
|
2341125X200 | 25 | 42 | SK 40 | 200 | - | 1 Stück |
€212.47
|
|||
| 9 |
|
23414632X70 | 32 | 50 | SK 50 | 70 | Zylinder | 1 Stück |
€122.93
|
|||
| 10 |
|
2341125X160 | 25 | 42 | SK 40 | 160 | - | 1 Stück |
€155.89
|
|||
| 13 |
|
23414640X80 | 40 | 63 | SK 50 | 80 | Zylinder | 1 Stück |
€122.93
|
|||
| 5 |
|
23414625X70 | 25 | 42 | SK 50 | 70 | Zylinder | 1 Stück |
€117.87
|
|||
| 7 |
|
23414625X160 | 25 | 42 | SK 50 | 160 | Zylinder | 1 Stück |
€187.84
|
|||
| 19 |
|
2341140X200 | 40 | 63 | SK 40 | 200 | - | 1 Stück |
€235.50
|
|||
| 8 |
|
2341125X70 | 25 | 42 | SK 40 | 70 | - | 1 Stück |
€86.81
|
|||
| 7 |
|
2341116X200 | 16 | 32 | SK 40 | 200 | - | 1 Stück |
€205.39
|
|||
| 11 |
|
23414632X160 | 32 | 50 | SK 50 | 160 | Zylinder | 1 Stück |
€187.84
|
|||
| 17 |
|
2341140X100 | 40 | 63 | SK 40 | 100 | - | 1 Stück |
€122.27
|
|||
| 10 |
|
23414632X100 | 32 | 50 | SK 50 | 100 | Zylinder | 1 Stück |
€165.53
|
|||
| 14 |
|
23414640X100 | 40 | 63 | SK 50 | 100 | Zylinder | 1 Stück |
€170.35
|
|||
| 14 |
|
2341132X160 | 32 | 50 | SK 40 | 160 | - | 1 Stück |
€159.40
|
|||
| 12 |
|
23414632X200 | 32 | 50 | SK 50 | 200 | Zylinder | 1 Stück |
€240.32
|
|||
| 18 |
|
2341140X160 | 40 | 63 | SK 40 | 160 | - | 1 Stück |
€166.48
|
