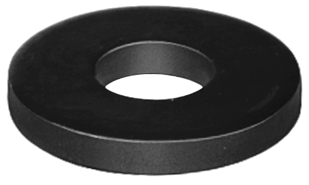

Scheibe für Schraube DIN6340 M16
Compare
| Norm: | DIN 6340 |
|---|
Variants

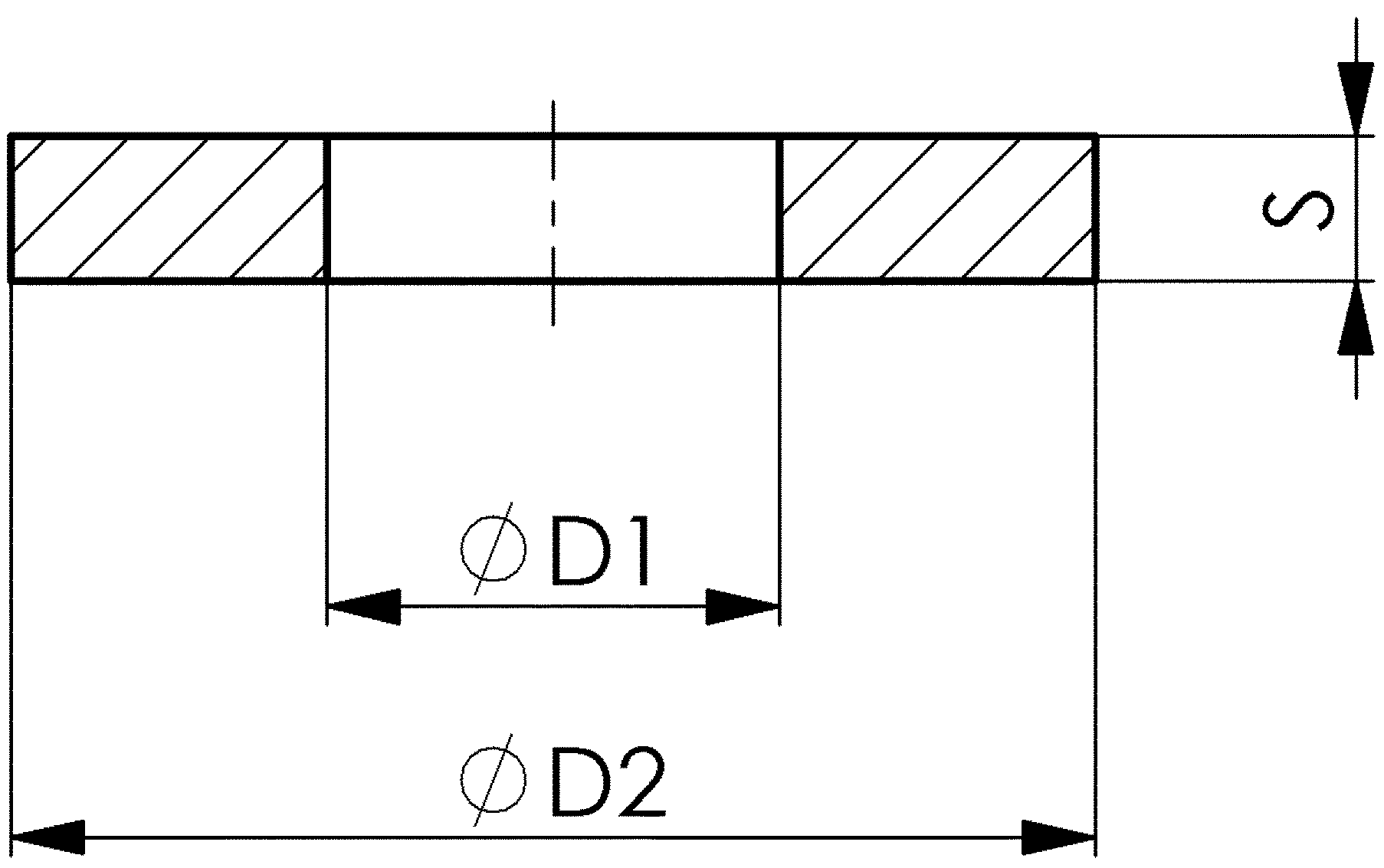

| Position | Code | D1 (mm) | S (mm) | D2 (mm) | Passend zu | Gr- | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 |
|
2653014 | 15 | 5 | 40 | Schrauben M14 | - | 1 Stück |
€1.30
|
|||
| 6 |
|
2653018 | 19 | 6 | 45 | Schrauben M18 | - | 1 Stück |
€1.90
|
|||
| 8 |
|
2653022 | 23 | 8 | 50 | Schrauben M22 | 7/8" | 1 Stück |
€2.80
|
|||
| 7 |
|
2653020 | 21 | 6 | 50 | Schrauben M20 | 3/4" | 1 Stück |
€2.40
|
|||
| 1 |
|
265308 | 8,4 | 4 | 23 | Schrauben M8 | 5/16" | 1 Stück |
€0.90
|
|||
| 5 |
|
2653016 | 17 | 6 | 45 | Schrauben M16 | 5/8" | 1 Stück |
€1.50
|
|||
| 2 |
|
2653010 | 10,5 | 4 | 28 | Schrauben M10 | 3/8" | 1 Stück |
€1.00
|
|||
| 3 |
|
2653012 | 13 | 5 | 35 | Schrauben M12 | 1/2" | 1 Stück |
€1.10
|
|||
| 9 |
|
2653024 | 25 | 8 | 60 | Schrauben M24 | 7/8" | 1 Stück |
€3.50
|
