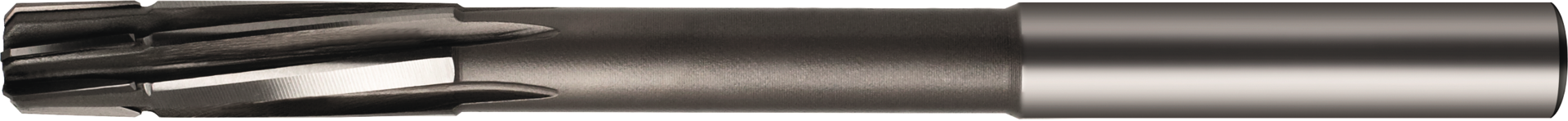

Maschinenreibahle HM/VHM K10 H7 WN D2mm
Compare
| Drallrichtung: | links |
|---|---|
| Einsatz: | für Stähle bis 1200 N/mm², Grauguss >= 240 HB, Mn-Stähle, AlSi-Legierungen, harte bzw. abrasive Kunststoffe, für Durchgangslöcher H7 (bedingt auch Sacklochbohrungen) |
| Einstellbarkeit: | Nein |
| Form: | B |
| Form des Schaftes: | Zylinder |
| Material: | VHM |
| Norm: | Werksnorm |
| Schneidrichtung: | rechts |
| Tol-: | H7 |
Variants

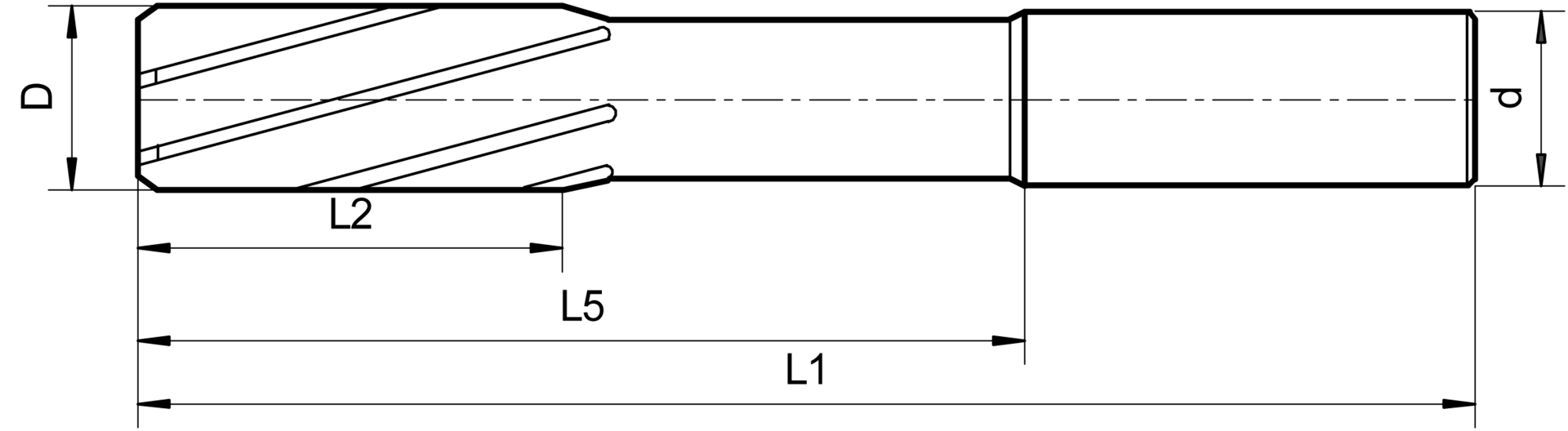

| Position | Code | d (mm) | D (mm) | Z | L1 (mm) | L2 (mm) | L5 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 |
|
132102,5 | 2,5 | 2,5 | 4 | 57 | 14 | 19 | 1 Stück |
€36.60
|
|||
| 3 |
|
132101,4 | 1,4 | 1,4 | 3 | 40 | 8 | 13 | 1 Stück |
€46.40
|
|||
| 21 |
|
1321010 | 10 | 10 | 6 | 133 | 38 | 87 | 1 Stück |
€93.80
|
|||
| 7 |
|
132102 | 2 | 2 | 4 | 49 | 11 | 16 | 1 Stück |
€33.00
|
|||
| 11 |
|
132103 | 3 | 3 | 6 | 61 | 15 | 20 | 1 Stück |
€40.70
|
|||
| 20 |
|
132109 | 9 | 9 | 6 | 125 | 36 | 81 | 1 Stück |
€118.00
|
|||
| 30 |
|
1321019 | 16 | 19 | 6 | 189 | 58 | 131 | 1 piece |
€347.80
|
|||
| 8 |
|
132102,2 | 2,2 | 2,2 | 4 | 53 | 12 | 17 | 1 Stück |
€56.20
|
|||
| 15 |
|
132104,5 | 4,5 | 4,5 | 6 | 80 | 21 | 47 | 1 Stück |
€65.80
|
|||
| 29 |
|
1321018 | 14 | 18 | 6 | 182 | 56 | 130 | 1 Stück |
€155.30
|
|||
| 18 |
|
132107 | 7,1 | 7 | 6 | 109 | 31 | 69 | 1 Stück |
€94.40
|
|||
| 23 |
|
1321012 | 10 | 12 | 6 | 151 | 44 | 105 | 1 Stück |
€89.20
|
|||
| 22 |
|
1321011 | 10 | 11 | 6 | 142 | 41 | 96 | 1 Stück |
€95.20
|
|||
| 28 |
|
1321017 | 14 | 17 | 6 | 175 | 54 | 123 | 1 Stück |
€145.90
|
|||
| 27 |
|
1321016 | 12,5 | 16 | 6 | 170 | 52 | 120 | 1 Stück |
€107.30
|
|||
| 19 |
|
132108 | 8 | 8 | 6 | 117 | 33 | 75 | 1 Stück |
€88.70
|
|||
| 16 |
|
132105 | 5 | 5 | 6 | 86 | 23 | 52 | 1 Stück |
€59.20
|
|||
| 10 |
|
132102,8 | 2,8 | 2,8 | 4 | 61 | 15 | 20 | 1 Stück |
€44.00
|
|||
| 6 |
|
132101,8 | 1,8 | 1,8 | 4 | 46 | 9 | 14 | 1 Stück |
€49.60
|
|||
| 14 |
|
132104 | 4 | 4 | 6 | 75 | 19 | 43 | 1 Stück |
€56.20
|
|||
| 1 |
|
132101 | 1 | 1 | 3 | 34 | 5,5 | 10,5 | 1 Stück |
€38.70
|
|||
| 13 |
|
132103,5 | 3,5 | 3,5 | 6 | 70 | 18 | 23 | 1 Stück |
€47.20
|
|||
| 25 |
|
1321014 | 12,5 | 14 | 6 | 160 | 47 | 110 | 1 Stück |
€101.00
|
|||
| 24 |
|
1321013 | 10 | 13 | 6 | 151 | 44 | 105 | 1 Stück |
€96.80
|
|||
| 31 |
|
1321020 | 16 | 20 | 6 | 195 | 60 | 137 | 1 Stück |
€151.30
|
|||
| 12 |
|
132103,2 | 3,2 | 3,2 | 6 | 65 | 16 | 21 | 1 Stück |
€101.20
|
|||
| 17 |
|
132106 | 5,6 | 6 | 6 | 93 | 26 | 57 | 1 Stück |
€67.30
|
|||
| 26 |
|
1321015 | 12,5 | 15 | 6 | 162 | 50 | 112 | 1 Stück |
€114.00
|
|||
| 2 |
|
132101,2 | 1,2 | 1,2 | 3 | 38 | 7,5 | 12,5 | 1 Stück |
€47.20
|
|||
| 4 |
|
132101,5 | 1,5 | 1,5 | 3 | 40 | 8 | 13 | 1 Stück |
€34.20
|
|||
| 5 |
|
132101,6 | 1,6 | 1,6 | 3 | 43 | 9 | 14 | 1 Stück |
€40.30
|
