Line laser, red, Z-LASER Z40R-635-lg90

Product number: XZLZR0000092

€761.60*

Prices incl. VAT plus shipping costs

ex works

piece
Remember
Print product details
Compare Compare
Downloads
Datenblatt
Line laser for non-mobile positioning applications
- Output power: 40mW
- Wavelength: 635nm (red)
- ca. 11-15m line length
- Focus: fixed
- Supply voltage: 90-265VAC
- Connection: 2m cable with standard plug
- Dimensions: ø40 x 200mm
- Housing: Aluminium
- Working Temperature: -10°C to +50°C
- Protection class: IP65
- Laser class (EN 60825-1): 2M
- 12 months manufacturer's warranty

Zubehör

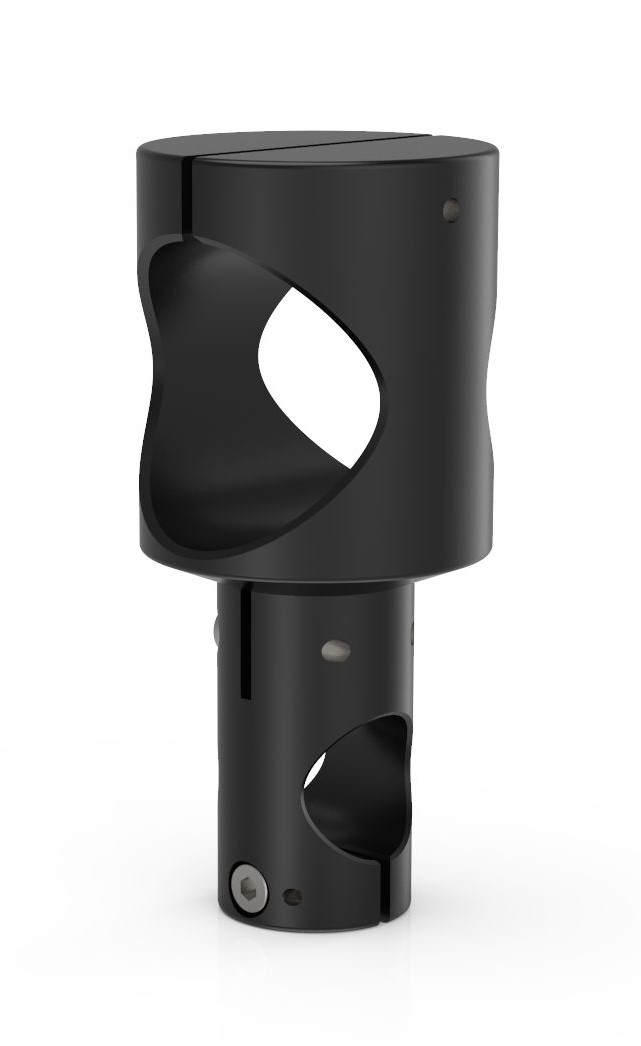

Rotatable block holder for lasers with ø40mm housing diameter H0-40-20 bracket
XZL100182500 - €59.50
Rotatable block holder for lasers with ø40mm housing diameter H0-40-20 bracket
Material: Aluminium, black anodized Functions: - Roll laser around the longitudinal axis (360°) - Pitch the laser around the transverse axis - Move laser parallel to the transverse axis - Yaw laser around the vertical axis

per piece
€59.50
Compare Compare
Laser enhancement goggles to improve the visibility of red lasers
XZLLZB - €35.70
Laser enhancement goggles to improve the visibility of red lasers

per piece
€35.70
Compare Compare

ähnliche Produkte

Dot laser, green, free focusable Z-LASER Z1F-520-pe-F
XZLZF0000202 - €345.10
Dot laser, green, free focusable Z-LASER Z1F-520-pe-F
Focusable mini spot laser module for non-mobile positioning applications  - Output power: <1mW  - Wavelength: 520nm (green)  - Focus: free focusable  - Supply voltage: 3-6VDC  - Connection: 2m cable with plug for WPSB power supply  - Dimensions: ø11 x 40-50mm  - Housing: brass, chrome-plated black  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 2  - 12 months manufacturer's warranty

per piece
€345.10
Compare Compare
Dot laser, red, battery operated Z-LASER Z1M18B-F-635-pe
XZLZA0000124 - €214.20
Dot laser, red, battery operated Z-LASER Z1M18B-F-635-pe
Battery operated dot laser for mobile positioning applications (Pointer)  - Output power: <1mW  - Wavelength: 635nm (red)  - Focus: 2.000mm, fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 2  - 12 months manufacturer's warranty

per piece
€214.20
Compare Compare
Dot laser, red, free focusable Z-LASER Z1F-635-pe-F
XZLZF0000102 - €249.90
Dot laser, red, free focusable Z-LASER Z1F-635-pe-F
Focusable mini spot laser module for non-mobile positioning applications  - Output power: <1mW  - Wavelength: 635nm (red)  - Focus: free focusable  - Supply voltage: 3-6VDC  - Connection: 2m cable with plug for WPSB power supply  - Dimensions: ø11 x 40-50mm  - Housing: brass, chrome-plated black  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 2  - 12 months manufacturer's warranty

per piece
€249.90
Compare Compare
Dot laser, red, free focusable Z-LASER Z1M18B-F-635-pe
XZLZM18RF088 - €368.90
Dot laser, red, free focusable Z-LASER Z1M18B-F-635-pe
Dot laser (Pointer) for non-mobile positioning applications  - Output power: <1mW  - Wavelength: 635nm (red)  - Projection: dot, elliptical  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2  - 24 months manufacturer's warranty

per piece
€368.90
Compare Compare
Line laser, green, free focusable Z-LASER Z10M18B3-F-520-lg90
XZLZM18GF565 - €630.70
Line laser, green, free focusable Z-LASER Z10M18B3-F-520-lg90
Linienlaser für stationäre Positionieranwendungen- Ausgangsleistung: 10mW- Wellenlänge: 520nm (grün)- bis zu 8m Linienlänge- Fokusabstand: frei einstellbar- Versorgungsspannung: 5-28VDC- Anschluss: M12x1 Rundsteckverbinder, 4polig - Abmessungen: ø20 x 108mm- Gehäuse: Messing verchromt- Betriebstemperatur: -10°C bis +50°C- Schutzart: IP67 - Laserklasse (EN 60825-1): 2M - 24 Monate Herstellergarantie

per piece
€630.70
Compare Compare
Line laser, green, free focusable Z-LASER Z20M18B3-F-520-lg90
XZLZM18GF530 - €702.10
Line laser, green, free focusable Z-LASER Z20M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 20mW  - Wavelength: 520nm (green)  - up to 15m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2M  - 24 months manufacturer's warranty

per piece
€702.10
Compare Compare
Line laser, green, free focusable Z-LASER Z40M18B3-F-520-lg90
XZLZM18GF501 - €773.50
Line laser, green, free focusable Z-LASER Z40M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 40mW  - Wavelength: 520nm (green)  - up to 20m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2M  - 24 months manufacturer's warranty

per piece
€773.50
Compare Compare
Line laser, green, free focusable Z-LASER Z5M18B3-F-520-lg90
XZLZM18GF510 - €571.20
Line laser, green, free focusable Z-LASER Z5M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 520nm (green)  - up to 4m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€571.20
Compare Compare
Line laser, red Z-LASER Z10M18B-638-lg90
XZLZM18R0011 - €416.50
Line laser, red Z-LASER Z10M18B-638-lg90
Line laser for non-mobile positioning applications  - Output power: 10mW  - Wavelength: 638nm (red)  - ca. 3-5m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€416.50
Compare Compare
Line laser, red Z-LASER Z3M18B-635-lg90
XZLZM18R0021 - €321.30
Line laser, red Z-LASER Z3M18B-635-lg90
Line laser for non-mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€321.30
Compare Compare
Line laser, red Z-LASER Z5M18B-635-lg90
XZLZM18R0010 - €321.30
Line laser, red Z-LASER Z5M18B-635-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€321.30
Compare Compare
Line laser, red, battery operated Z-LASER Z3AT-635-lg90
XZLZA0000103 - €238.00
Line laser, red, battery operated Z-LASER Z3AT-635-lg90
Battery operated line laser for mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 1M  - 12 months manufacturer's warranty

per Piece
€238.00
Compare Compare
Line laser, red, battery operated Z-LASER Z5AT-635-lg90
XZLZA0000104 - €261.80
Line laser, red, battery operated Z-LASER Z5AT-635-lg90
Battery operated line laser for mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 1M  - 12 months manufacturer's warranty

per piece
€261.80
Compare Compare
Line laser, red, free focusable Z-LASER Z10M18B-F-638-lg90
XZLZM18RF022 - €523.60
Line laser, red, free focusable Z-LASER Z10M18B-F-638-lg90
Line laser for non-mobile positioning applications  - Output power: 10mW  - Wavelength: 638nm (red)  - ca. 3-5m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€523.60
Compare Compare
Line laser, red, free focusable Z-LASER Z3M18B-F-635-lg90
XZLZM18RF020 - €428.40
Line laser, red, free focusable Z-LASER Z3M18B-F-635-lg90
Line laser for non-mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€428.40
Compare Compare
Line laser, red, free focusable Z-LASER Z5M18B-F-635-lg90
XZLZM18RF027 - €428.40
Line laser, red, free focusable Z-LASER Z5M18B-F-635-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€428.40
Compare Compare
Line laser, red, Z-LASER Z15R-635-lg90
XZLZR0000003 - €595.00
Line laser, red, Z-LASER Z15R-635-lg90
Line laser for non-mobile positioning applications  - Output power: 15mW  - Wavelength: 635nm (red)  - ca. 4-6m line length  - Focus: fixed  - Supply voltage: 90-265VAC  - Connection: 2m cable with standard plug  - Dimensions: ø40 x 200mm  - Housing: Aluminium  - Working Temperature: -10°C to +50°C  - Protection class: IP65  - Laser class (EN 60825-1): 2M  - 12 months manufacturer's warranty

per piece
€595.00
Compare Compare
Line laser, red, Z-LASER Z40R-635-lg90
XZLZR0000092 - €761.60
Line laser, red, Z-LASER Z40R-635-lg90
Line laser for non-mobile positioning applications- Output power: 40mW- Wavelength: 635nm (red) - ca. 11-15m line length- Focus: fixed- Supply voltage: 90-265VAC- Connection: 2m cable with standard plug- Dimensions: ø40 x 200mm - Housing: Aluminium- Working Temperature: -10°C to +50°C - Protection class: IP65 - Laser class (EN 60825-1): 2M- 12 months manufacturer's warranty

per piece
€761.60
Compare Compare
