Hydro-Dehnspannfutter HSK100-A IK L95mm DIN69893-A kurz/schlank D12mm
Compare
| Ausführung: | kurze, schlanke Ausführung, mit Innenkühlung und axialer Längeneinstellung |
|---|---|
| Bearbeitungstechnologie: | HSC |
| Einsatz: | zum HSC-Fräsen, Gewindefräsen, Bohren und Reiben |
| Form: | A |
| IK: | ja |
| Norm: | DIN 69893 |
| Wuchtgüte: | G2,5 25000 |
| l3 (mm): | 10 |
Variants

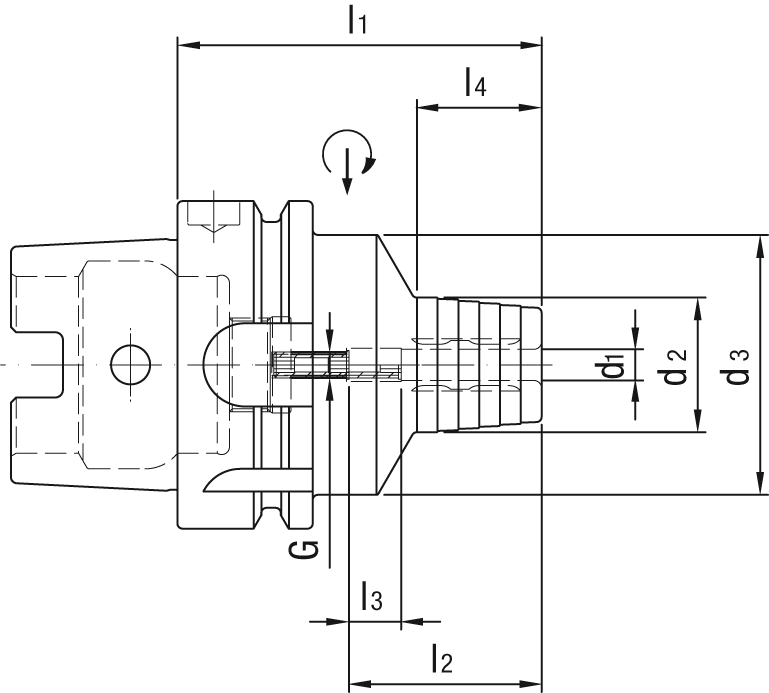

| Position | Code | l2 (mm) | l1 (mm) | d3 (mm) | d1 (mm) | l4 (mm) | Aufnahme | d2 (mm) | Gewinde | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 |
|
2371418 | 49 | 90 | 50 | 18 | 47 | HSK 63-A | 40 | M12 x 1 | 1 Stück |
€482.70
|
|||
| 10 |
|
2371632 | 61 | 110 | 67 | 32 | 60 | HSK 100-A | 63 | M16 x 1 | 1 Stück |
€639.40
|
|||
| 5 |
|
2371614 | 46 | 95 | 50 | 14 | 47 | HSK 100-A | 34 | M10 x 1 | 1 Stück |
€639.40
|
|||
| 2 |
|
237148 | 37 | 70 | 50 | 8 | 25 | HSK 63-A | 28 | M6 | 1 Stück |
€482.70
|
|||
| 5 |
|
2371414 | 46 | 85 | 50 | 14 | 40 | HSK 63-A | 34 | M10 x 1 | 1 Stück |
€482.70
|
|||
| 2 |
|
237168 | 37 | 75 | 50 | 8 | 26 | HSK 100-A | 28 | M6 | 1 Stück |
€639.40
|
|||
| 8 |
|
2371420 | 51 | 90 | 50 | 20 | 48 | HSK 63-A | 42 | M16 x 1 | 1 Stück |
€482.70
|
|||
| 6 |
|
2371416 | 49 | 90 | 50 | 16 | 46 | HSK 63-A | 38 | M12 x 1 | 1 Stück |
€482.70
|
|||
| 9 |
|
2371425 | 57 | 120 | 53 | 25 | 63 | HSK 63-A | 57 | M16 x 1 | 1 Stück |
€482.70
|
|||
| 7 |
|
2371618 | 49 | 100 | 50 | 18 | 53 | HSK 100-A | 40 | M12 x 1 | 1 Stück |
€639.40
|
|||
| 3 |
|
2371610 | 41 | 90 | 50 | 10 | 42 | HSK 100-A | 30 | M8 x 1 | 1 Stück |
€639.40
|
|||
| 10 |
|
2371432 | 61 | 125 | 59 | 32 | 61 | HSK 63-A | 63 | M16 x 1 | 1 Stück |
€482.70
|
|||
| 9 |
|
2371625 | 57 | 110 | 63 | 25 | 62 | HSK 100-A | 57 | M16 x 1 | 1 Stück |
€639.40
|
|||
| 8 |
|
2371620 | 51 | 105 | 50 | 20 | 59 | HSK 100-A | 42 | M16 x 1 | 1 Stück |
€639.40
|
|||
| 4 |
|
2371412 | 46 | 85 | 50 | 12 | 40 | HSK 63-A | 32 | M10 x 1 | 1 Stück |
€482.70
|
|||
| 4 |
|
2371612 | 46 | 95 | 50 | 12 | 47 | HSK 100-A | 32 | M10 x 1 | 1 Stück |
€639.40
|
|||
| 1 |
|
237146 | 37 | 70 | 50 | 6 | 24 | HSK 63-A | 26 | M5 | 1 Stück |
€482.70
|
|||
| 3 |
|
2371410 | 41 | 80 | 50 | 10 | 35 | HSK 63-A | 30 | M8 x 1 | 1 Stück |
€482.70
|
|||
| 6 |
|
2371616 | 49 | 100 | 50 | 16 | 53 | HSK 100-A | 38 | M12 x 1 | 1 Stück |
€639.40
|
|||
| 1 |
|
237166 | 37 | 75 | 50 | 6 | 26 | HSK 100-A | 26 | M5 | 1 Stück |
€639.40
|
