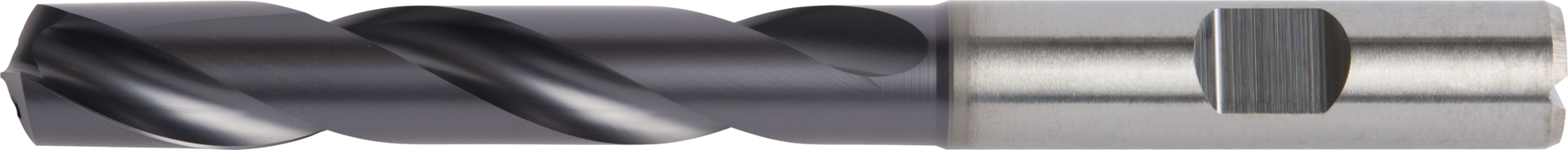

Hochleistungsbohrer VHM TiAlN VariDrill™ 5xD IK DIN6537/DIN6535-HB D7,8mm
Compare
| Ausführung: | ohne Führungsfasen, mit gerader Schneide für eine gleichmäßigere Verteilung der Schnittkräfte und weniger Ausbrüche an der Schneidkante |
|---|---|
| Beschichtung: | TiAIN |
| Einsatz: | Stahlwerkstoffe, nichtrostende Stähle, Gusseisen, Aluminium und Hochtemperaturlegierungen |
| Einsatzgebiet: | Special alloys, cast iron, non-ferrous metals, stainless steel, steel |
| IK: | mit Kühlschmierstoff-Austritt axial konzentrisch |
| Material: | VHM |
| Norm: | DIN 6537-L |
| Schaft: | HA |
| Spitzenwinkel (°): | 140 |
| Z: | 2 |
| x D: | 5 |
Variants

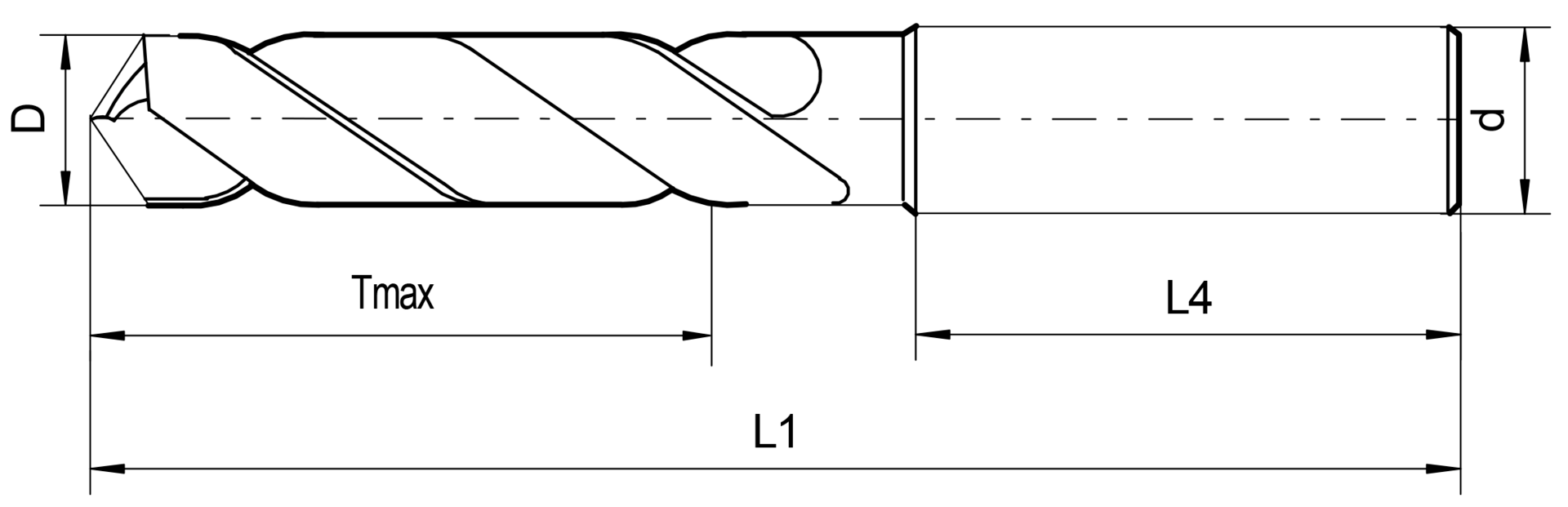

| Position | Code | D (mm) | d (mm) | Tmax (mm) | L1 (mm) | L4 (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19 |
|
1184152,8 | 2,8 | 4 | 17 | 58 | 28 |
|
1 Stück |
€39.27
|
||
| 21 |
|
1184153 | 3 | 6 | 23 | 66 | 36 |
|
1 Stück |
€35.58
|
||
| 25 |
|
1184153,3 | 3,3 | 6 | 23 | 66 | 36 |
|
1 Stück |
€36.18
|
||
| 27 |
|
1184153,5 | 3,5 | 6 | 23 | 66 | 36 |
|
1 Stück |
€36.18
|
||
| 29 |
|
1184153,7 | 3,7 | 6 | 23 | 66 | 36 |
|
1 Stück |
€36.18
|
||
| 30 |
|
1184153,8 | 3,8 | 6 | 29 | 74 | 36 |
|
1 Stück |
€88.06
|
||
| 33 |
|
1184154,1 | 4,1 | 6 | 29 | - | 36 |
|
1 piece |
€37.49
|
||
| 34 |
|
1184154,2 | 4,2 | 6 | 29 | 74 | 36 |
|
1 Stück |
€37.49
|
||
| 35 |
|
1184154,3 | 4,3 | 6 | 29 | 74 | 36 |
|
1 Stück |
€37.49
|
||
| 37 |
|
1184154,5 | 4,5 | 6 | 29 | 74 | 36 |
|
1 Stück |
€37.49
|
||
| 40 |
|
1184154,7 | 4,7 | 6 | 29 | 74 | 36 |
|
1 Stück |
€91.15
|
||
| 41 |
|
1184154,8 | 4,8 | 6 | 35 | 82 | 36 |
|
1 Stück |
€37.49
|
||
| 43 |
|
1184155 | 5 | 6 | 35 | 82 | 36 |
|
1 Stück |
€37.49
|
||
| 44 |
|
1184155,1 | 5,1 | 6 | 35 | 82 | 36 |
|
1 piece |
€76.40
|
||
| 45 |
|
1184155,2 | 5,2 | 6 | 35 | 82 | 36 |
|
1 Stück |
€75.68
|
||
| 48 |
|
1184155,5 | 5,5 | 6 | 35 | 82 | 36 |
|
1 Stück |
€38.08
|
||
| 50 |
|
1184155,6 | 5,6 | 6 | 35 | 82 | 36 |
|
1 Stück |
€76.40
|
||
| 52 |
|
1184155,8 | 5,8 | 6 | 35 | - | 36 |
|
1 piece |
€77.83
|
||
| 53 |
|
1184155,9 | 5,9 | 6 | 35 | - | 36 |
|
1 piece |
€110.08
|
||
| 56 |
|
1184156,2 | 6,2 | 8 | 43 | 91 | 36 |
|
1 Stück |
€83.42
|
||
| 58 |
|
1184156,4 | 6,4 | 8 | 43 | 91 | 36 |
|
1 Stück |
€41.65
|
||
| 62 |
|
1184156,8 | 6,8 | 8 | 43 | 91 | 36 |
|
1 pices |
€41.65
|
||
| 64 |
|
1184157 | 7 | 8 | 43 | 91 | 36 |
|
1 Stück |
€41.65
|
||
| 68 |
|
1184157,4 | 7,4 | 8 | 43 | 91 | 36 |
|
1 Stück |
€89.13
|
||
| 69 |
|
1184157,5 | 7,5 | 8 | 43 | 91 | 36 |
|
1 Stück |
€44.51
|
||
| 72 |
|
1184157,8 | 7,8 | 8 | 43 | 91 | 36 |
|
1 Stück |
€44.03
|
||
| 74 |
|
1184158 | 8 | 8 | 43 | 91 | 36 |
|
1 Stück |
€88.30
|
||
| 79 |
|
1184158,5 | 8,5 | 10 | 49 | 103 | 40 |
|
1 Stück |
€48.67
|
||
| 80 |
|
1184158,6 | 8,6 | 10 | 49 | 103 | 40 |
|
1 Stück |
€48.67
|
||
| 84 |
|
1184159 | 9 | 10 | 49 | 103 | 40 |
|
1 Stück |
€48.67
|
||
| 87 |
|
1184159,3 | 9,3 | 10 | 49 | 103 | 40 |
|
1 piece |
€49.27
|
||
| 91 |
|
1184159,7 | 9,7 | 10 | 49 | 103 | 40 |
|
1 Stück |
€119.60
|
||
| 92 |
|
1184159,8 | 9,8 | 10 | 49 | 103 | 40 |
|
1 pices |
€119.60
|
||
| 93 |
|
1184159,9 | 9,9 | 10 | 49 | - | 40 |
|
1 piece |
€130.31
|
||
| 94 |
|
11841510 | 10 | 10 | 49 | 103 | 40 |
|
1 Stück |
€119.60
|
||
| 96 |
|
11841510,2 | 10,2 | 12 | 56 | 118 | 45 |
|
1 Stück |
€67.00
|
||
| 97 |
|
11841510,3 | 10,3 | 12 | 56 | 118 | 45 |
|
1 Stück |
€64.62
|
||
| 99 |
|
11841510,5 | 10,5 | 12 | 56 | 118 | 45 |
|
1 Stück |
€67.59
|
||
| 104 |
|
11841511 | 11 | 12 | 56 | 118 | 45 |
|
1 Stück |
€64.62
|
||
| 105 |
|
11841511,1 | 11,1 | 12 | 56 | - | 45 |
|
1 piece |
€65.69
|
||
| 106 |
|
11841511,2 | 11,2 | 12 | 56 | 118 | 45 |
|
1 Stück |
€67.59
|
||
| 111 |
|
11841511,7 | 11,7 | 12 | 56 | 118 | 45 |
|
1 Stück |
€164.34
|
||
| 112 |
|
11841511,8 | 11,8 | 12 | 56 | 118 | 45 |
|
1 Stück |
€65.69
|
||
| 114 |
|
11841512 | 12 | 12 | 56 | 118 | 45 |
|
1 Stück |
€85.44
|
||
| 119 |
|
11841512,5 | 12,5 | 12 | 60 | 124 | 45 |
|
1 Stück |
€67.59
|
||
| 124 |
|
11841513 | 13 | 14 | 60 | 124 | 45 |
|
1 Stück |
€89.96
|
||
| 129 |
|
11841513,5 | 13,5 | 14 | 60 | 124 | 45 |
|
1 Stück |
€102.58
|
||
| 134 |
|
11841514 | 14 | 14 | 60 | 124 | 45 |
|
1 Stück |
€156.96
|
||
| 154 |
|
11841516 | 16 | 16 | 63 | 133 | 48 |
|
1 Stück |
€118.41
|
||
| 174 |
|
11841518 | 18 | 18 | 71 | 143 | 48 |
|
1 Stück |
€170.53
|
||
| 184 |
|
11841519 | 19 | 20 | 77 | 153 | 50 |
|
1 Stück |
€174.34
|
||
| 194 |
|
11841520 | 20 | 20 | 77 | 153 | 50 |
|
1 Stück |
€399.84
|
