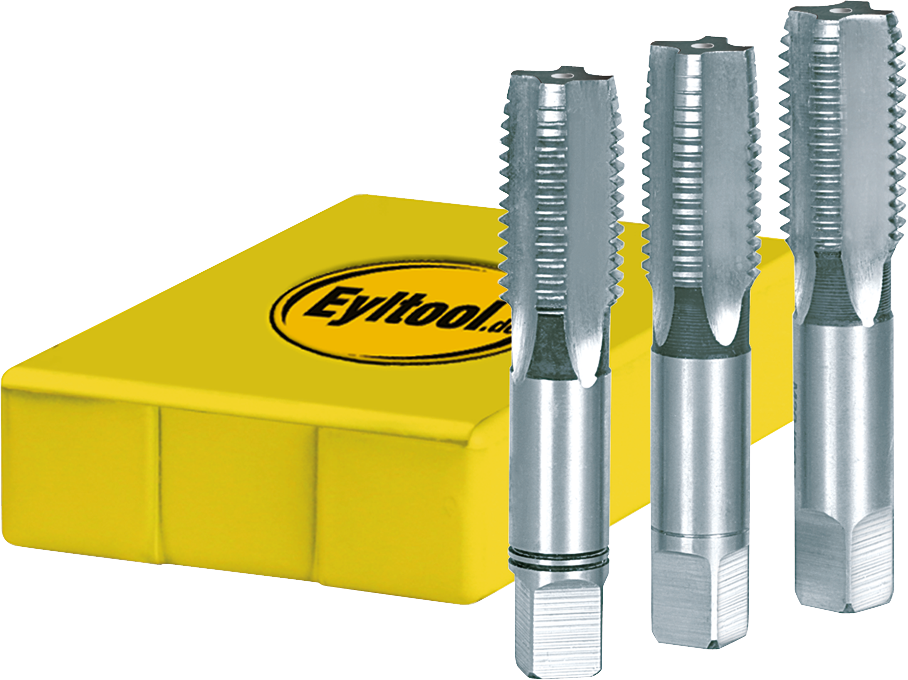

Handgewindebohrer Satz BSW HSS 3-teilig DIN352 Whitworth-Gewinde 7/32
Compare
| Anzahl Teile: | 3 |
|---|---|
| Art des Gewindes: | Whitworth BSW |
| Einsatz: | für gut zerspanbare Werkstoffe bis 900 N/mm², unlegierte und niedriglegierte Stähle |
| Einsatzgebiet: | cast iron, non-ferrous metals, steel |
| Form des Schaftes: | 4-kant |
| Gewinde: | Innengewinde |
| Material: | HSS |
| Norm: | DIN 352 |
| Product family overview: | Show in product family overview |
| Schneidrichtung: | right |
Variants

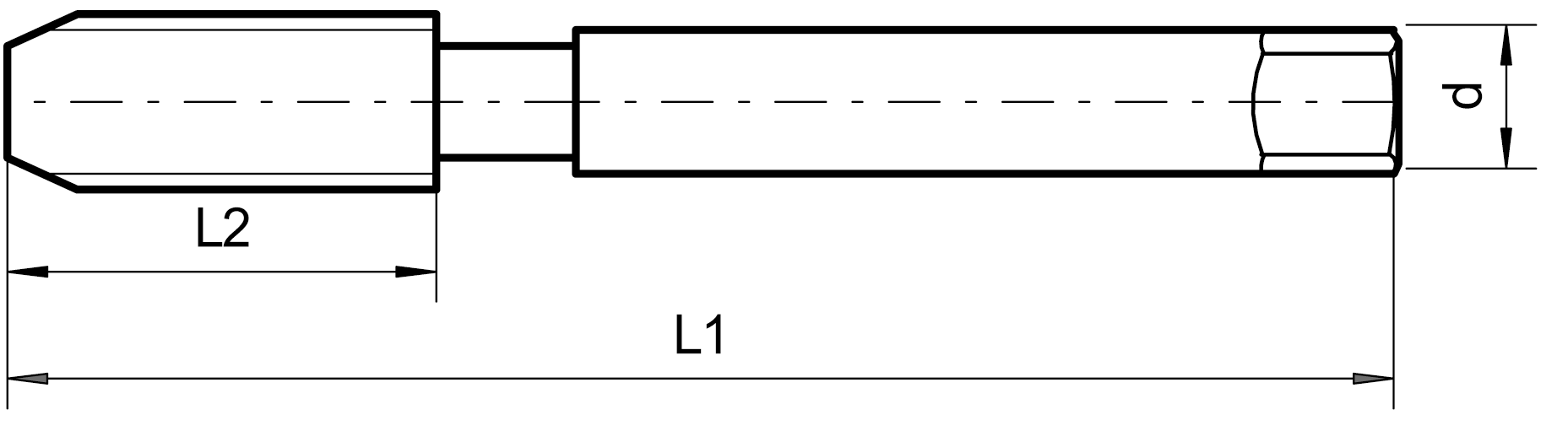

| Position | Code | L1 (mm) | d (mm) | Gänge/Zoll | L2 (mm) | Gewinde | Ø der Vorbohrung (mm) | □ (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 |
|
151367/32 | 50 | 6 | 24 | 18 | 7/32 | 4,4 | 4,9 | 1 set |
€31.20
|
|||
| 2 |
|
151361/8 | 40 | 3,5 | 40 | 12 | 1/8 | 2,6 | 2,7 | 1 set |
€34.30
|
|||
| 13 |
|
151363/4 | 95 | 14 | 10 | 40 | 3/4 | 16,5 | 11 | 1 set |
€125.50
|
|||
| 4 |
|
151363/16 | 50 | 6 | 24 | 18 | 3/16 | 3,6 | 4,9 | 1 set |
€34.20
|
|||
| 15 |
|
151361 | 110 | 18 | 8 | 50 | 1 | 22 | 14,5 | 1 set |
€193.10
|
|||
| 7 |
|
151365/16 | 56 | 6 | 18 | 22 | 5/16 | 6,5 | 4,9 | 1 set |
€34.20
|
|||
| 11 |
|
151369/16 | 80 | 11 | 12 | 30 | 9/16 | 12 | 9 | 1 set |
€72.50
|
|||
| 3 |
|
151365/32 | 45 | 4,5 | 32 | 14 | 5/32 | 3,1 | 3,4 | 1 set |
€34.20
|
|||
| 12 |
|
151365/8 | 80 | 12 | 11 | 32 | 5/8 | 13,5 | 9 | 1 set |
€94.80
|
|||
| 1 |
|
151361/16 | 36 | 2,5 | 60 | 10 | 1/16 | 1,15 | 2,1 | 1 set |
€46.80
|
|||
| 6 |
|
151361/4 | 50 | 6 | 20 | 19 | 1/4 | 5,1 | 4,9 | 1 set |
€34.20
|
|||
| 8 |
|
151363/8 | 70 | 7 | 16 | 24 | 3/8 | 7,9 | 5,5 | 1 set |
€43.00
|
|||
| 14 |
|
151367/8 | 100 | 18 | 9 | 40 | 7/8 | 19,25 | 14,5 | 1 set |
€153.60
|
|||
| 10 |
|
151361/2 | 75 | 9 | 12 | 29 | 1/2 | 10,5 | 7 | 1 set |
€64.20
|
|||
| 9 |
|
151367/16 | 70 | 8 | 14 | 24 | 7/16 | 9,3 | 6,2 | 1 set |
€48.30
|
