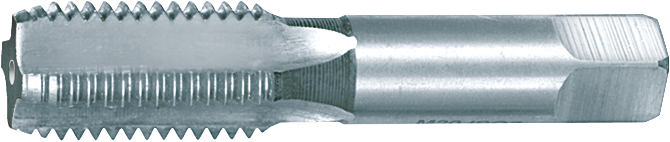

Handgewindebohrer MF HSS Fertigschneider einzeln DIN2181 ISO2-6H Anschnitt Form C M14x1,25mm
Compare
| Art des Gewindes: | metrisch fein |
|---|---|
| Drallrichtung: | rechts |
| Einsatz: | für metrisches ISO-Feingewinde DIN 13 in gut spanbaren Stählen bis 900 N/mm² für unlegierte und niedriglegierte Stähle, Baustähle, Guss, NE-Metalle, Zink, Magnesium-Legierungen und thermoplastische Kunststoffe |
| Einsatzgebiet: | Gusseisen, Nichteisenmetalle, Stahl |
| Form des Schaftes: | 4-kant |
| Gewinde: | Innengewinde |
| Material: | HSS |
| Norm: | DIN 2181 |
| Product family overview: | Show in product family overview |
| Schneidrichtung: | rechts |
| Tol-: | 6H |
Variants

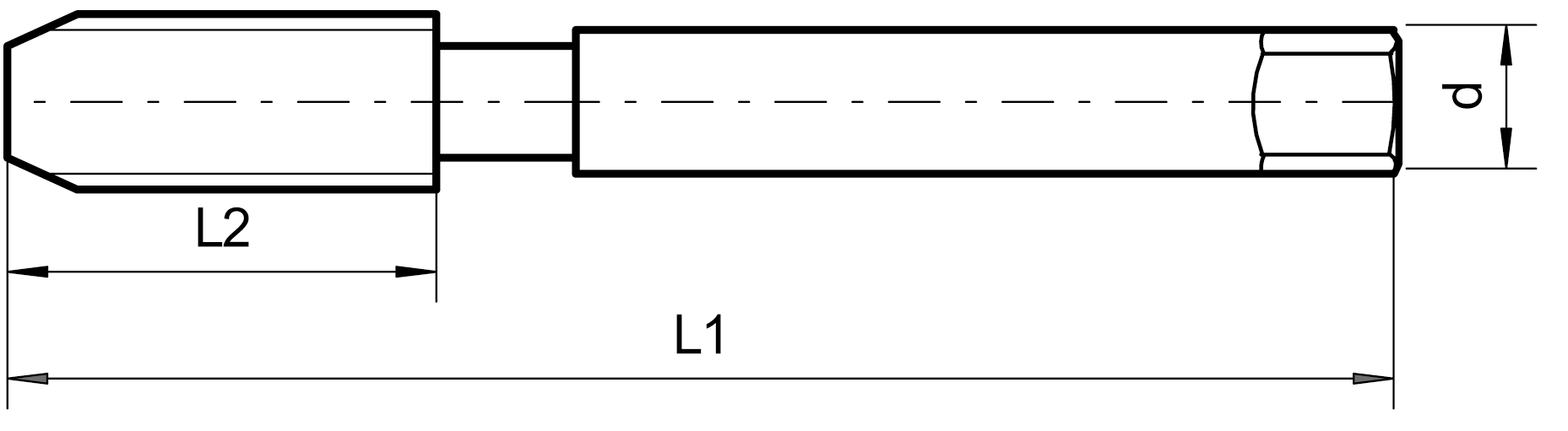

| Position | Code | d (mm) | L1 (mm) | Gewinde | Ø der Vorbohrung (mm) | □ (mm) | L2 (mm) | Steigung (mm) | Quantity | PU | Price/PU | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 27 |
|
15123M14X1,25 | 11 | 70 | M14 | 12,8 | 9 | 22 | 1,25 | 1 Stück |
€22.30
|
|||
| 16 |
|
15123M10X1,25 | 7 | 70 | M10 | 8,8 | 5,5 | 24 | 1,25 | 1 Stück |
€13.60
|
|||
| 93 |
|
15123M45X2 | 36 | 125 | M45 | 43 | 29 | 40 | 2 | 1 Stück |
€164.50
|
|||
| 89 |
|
15123M42X1,5 | 32 | 110 | M42 | 40,5 | 24 | 25 | 1,5 | 1 Stück |
€191.50
|
|||
| 2 |
|
15123M4X0,35 | 4,5 | 45 | M4 | 3,65 | 3,4 | 10 | 0,35 | 1 Stück |
€14.20
|
|||
| 92 |
|
15123M45X1,5 | 36 | 110 | M45 | 43,5 | 29 | 25 | 1,5 | 1 Stück |
€186.70
|
|||
| 15 |
|
15123M10X1 | 7 | 63 | M10 | 9 | 5,5 | 20 | 1 | 1 Stück |
€11.90
|
|||
| 101 |
|
15123M52X2 | 40 | 140 | M52 | 50 | 32 | 40 | 2 | 1 Stück |
€264.70
|
|||
| 91 |
|
15123M42X3 | 32 | 125 | M42 | 39 | 24 | 40 | 3 | 1 Stück |
€191.50
|
|||
| 20 |
|
15123M12X1 | 9 | 70 | M12 | 11 | 7 | 22 | 1 | 1 Stück |
€17.00
|
|||
| 96 |
|
15123M48X2 | 36 | 140 | M48 | 46 | 29 | 40 | 2 | 1 Stück |
€223.20
|
|||
| 3 |
|
15123M4X0,5 | 4,5 | 45 | M4 | 3,5 | 3,4 | 10 | 0,5 | 1 Stück |
€12.50
|
|||
| 102 |
|
15123M52X3 | 40 | 140 | M52 | 49 | 32 | 40 | 3 | 1 Stück |
€258.50
|
|||
| 14 |
|
15123M10X0,75 | 7 | 63 | M10 | 9,2 | 5,5 | 20 | 0,75 | 1 Stück |
€11.90
|
|||
| 38 |
|
15123M20X1 | 16 | 80 | M20 | 19 | 12 | 22 | 1 | 1 Stück |
€44.60
|
|||
| 95 |
|
15123M48X1,5 | 36 | 140 | M48 | 46,5 | 29 | 40 | 1,5 | 1 Stück |
€223.20
|
|||
| 72 |
|
15123M33X1,5 | 25 | 100 | M33 | 31,5 | 20 | 25 | 1,5 | 1 Stück |
€108.70
|
|||
| 4 |
|
15123M5X0,5 | 6 | 50 | M5 | 4,5 | 4,9 | 12 | 0,5 | 1 Stück |
€14.20
|
|||
| 40 |
|
15123M20X1,5 | 16 | 80 | M20 | 18,5 | 12 | 22 | 1,5 | 1 Stück |
€28.30
|
|||
| 98 |
|
15123M50X1,5 | 36 | 140 | M50 | 48,5 | 29 | 40 | 1,5 | 1 Stück |
€244.30
|
|||
| 10 |
|
15123M8X0,75 | 6 | 50 | M8 | 7,2 | 4,9 | 19 | 0,75 | 1 Stück |
€11.30
|
|||
| 9 |
|
15123M8X0,5 | 6 | 50 | M8 | 7,5 | 4,9 | 19 | 0,5 | 1 Stück |
€14.20
|
|||
| 50 |
|
15123M24X1,5 | 18 | 90 | M24 | 22,5 | 14,5 | 22 | 1,5 | 1 Stück |
€39.40
|
|||
| 87 |
|
15123M40X2 | 32 | 125 | M40 | 38 | 24 | 40 | 2 | 1 Stück |
€191.50
|
|||
| 43 |
|
15123M22X1 | 18 | 80 | M22 | 21 | 14,5 | 22 | 1 | 1 Stück |
€52.00
|
|||
| 78 |
|
15123M36X1,5 | 28 | 100 | M36 | 34,5 | 22 | 25 | 1,5 | 1 Stück |
€136.40
|
|||
| 31 |
|
15123M16X1 | 12 | 70 | M16 | 15 | 9 | 22 | 1 | 1 Stück |
€35.40
|
|||
| 65 |
|
15123M30X1,5 | 22 | 90 | M30 | 28,5 | 18 | 22 | 1,5 | 1 Stück |
€79.40
|
|||
| 77 |
|
15123M35X1,5 | 28 | 100 | M35 | 33,5 | 22 | 25 | 1,5 | 1 Stück |
€136.40
|
|||
| 22 |
|
15123M12X1,5 | 9 | 70 | M12 | 10,5 | 7 | 22 | 1,5 | 1 Stück |
€17.00
|
|||
| 7 |
|
15123M6X0,75 | 6 | 50 | M6 | 5,2 | 4,9 | 14 | 0,75 | 1 Stück |
€11.30
|
|||
| 34 |
|
15123M18X1 | 14 | 80 | M18 | 17 | 11 | 22 | 1 | 1 Stück |
€36.90
|
|||
| 45 |
|
15123M22X1,5 | 18 | 80 | M22 | 20,5 | 14,5 | 22 | 1,5 | 1 Stück |
€52.00
|
|||
| 6 |
|
15123M6X0,5 | 6 | 50 | M6 | 5,5 | 4,9 | 14 | 0,5 | 1 Stück |
€14.20
|
|||
| 11 |
|
15123M8X1 | 6 | 56 | M8 | 7 | 4,9 | 22 | 1 | 1 Stück |
€11.30
|
|||
| 28 |
|
15123M14X1,5 | 11 | 70 | M14 | 12,5 | 9 | 22 | 1,5 | 1 Stück |
€22.30
|
|||
| 26 |
|
15123M14X1 | 11 | 70 | M14 | 13 | 9 | 22 | 1 | 1 Stück |
€24.80
|
|||
| 100 |
|
15123M52X1,5 | 40 | 140 | M52 | 50,5 | 32 | 40 | 1,5 | 1 Stück |
€244.30
|
|||
| 36 |
|
15123M18X1,5 | 14 | 80 | M18 | 16,5 | 11 | 22 | 1,5 | 1 Stück |
€37.30
|
|||
| 99 |
|
15123M50X2 | 36 | 140 | M50 | 48 | 29 | 40 | 2 | 1 Stück |
€202.10
|
|||
| 97 |
|
15123M48X3 | 36 | 140 | M48 | 45 | 29 | 40 | 3 | 1 Stück |
€223.20
|
|||
| 73 |
|
15123M33X2 | 25 | 100 | M33 | 31 | 20 | 25 | 2 | 1 Stück |
€127.60
|
|||
| 90 |
|
15123M42X2 | 32 | 125 | M42 | 40 | 24 | 40 | 2 | 1 Stück |
€191.50
|
|||
| 69 |
|
15123M32X1,5 | 22 | 90 | M32 | 30,5 | 18 | 22 | 1,5 | 1 Stück |
€108.70
|
|||
| 79 |
|
15123M36X2 | 28 | 125 | M36 | 34 | 22 | 40 | 2 | 1 Stück |
€136.40
|
|||
| 75 |
|
15123M34X1,5 | 28 | 100 | M34 | 32,5 | 22 | 25 | 1,5 | 1 Stück |
€136.40
|
|||
| 94 |
|
15123M45X3 | 36 | 125 | M45 | 42 | 29 | 40 | 3 | 1 Stück |
€159.70
|
|||
| 80 |
|
15123M36X3 | 28 | 125 | M36 | 33 | 22 | 40 | 3 | 1 Stück |
€136.40
|
|||
| 86 |
|
15123M40X1,5 | 32 | 110 | M40 | 38,5 | 24 | 25 | 1,5 | 1 Stück |
€191.50
|
|||
| 21 |
|
15123M12X1,25 | 9 | 70 | M12 | 10,8 | 7 | 22 | 1,25 | 1 Stück |
€17.00
|
|||
| 58 |
|
15123M27X1,5 | 20 | 90 | M27 | 25,5 | 16 | 22 | 1,5 | 1 Stück |
€61.80
|
|||
| 1 |
|
15123M3X0,35 | 3,5 | 40 | M3 | 2,65 | 2,7 | 9 | 0,35 | 1 Stück |
€12.50
|
|||
| 33 |
|
15123M16X1,5 | 12 | 70 | M16 | 14,5 | 9 | 22 | 1,5 | 1 Stück |
€26.20
|
