Dot laser, red, free focusable Z-LASER Z1F-635-pe-F

Product number: XZLZF0000102

€210.00*

Prices excl. VAT plus shipping costs

ordered

piece
Remember
Print product details
Compare Compare
Downloads
Datenblatt
Focusable mini spot laser module for non-mobile positioning applications
 - Output power: <1mW
 - Wavelength: 635nm (red)
 - Focus: free focusable
 - Supply voltage: 3-6VDC
 - Connection: 2m cable with plug for WPSB power supply
 - Dimensions: ø11 x 40-50mm
 - Housing: brass, chrome-plated black
 - Working Temperature: -10°C to +50°C
 - Protection class: IP40
 - Laser class (EN 60825-1): 2
 - 12 months manufacturer's warranty

Zubehör

Laser enhancement goggles to improve the visibility of red lasers
XZLLZB - €30.00
Laser enhancement goggles to improve the visibility of red lasers

per piece
€30.00
Compare Compare
5VDC plug-in power supply for ZD or ZF-pe-F lasers WPSB-5.0
XZLWPSB5 - €50.00
5VDC plug-in power supply for ZD or ZF-pe-F lasers WPSB-5.0
Regulated AC/DC switched-mode power supply unit  - 100-240VAC, 50-60Hz  - ca. 310mm cable with Texas-socket to connect  - 5VDC output voltage  - with Europe- and US/Japan-compatible interchangeable inserts

per piece
€50.00
Compare Compare

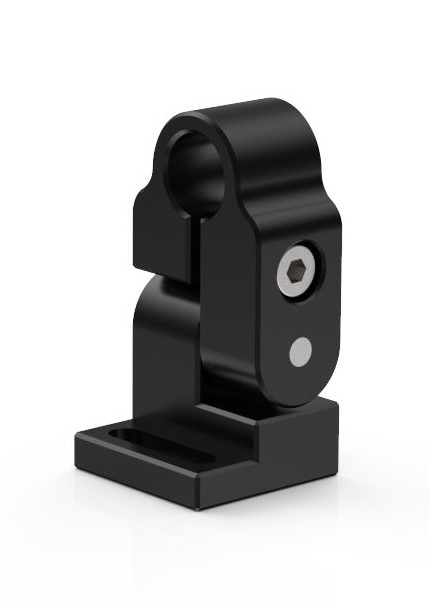

Holder for lasers with ø11mm housing diameter, aluminum H2-11M bracket
XZLH211M - €60.00
Holder for lasers with ø11mm housing diameter, aluminum H2-11M bracket
To be mounted on a flat surface, Functions: roll, move parallel and tilt

per piece
€60.00
Compare Compare

ähnliche Produkte

Dot laser, green, free focusable Z-LASER Z1F-520-pe-F
XZLZF0000202 - €290.00
Dot laser, green, free focusable Z-LASER Z1F-520-pe-F
Focusable mini spot laser module for non-mobile positioning applications  - Output power: <1mW  - Wavelength: 520nm (green)  - Focus: free focusable  - Supply voltage: 3-6VDC  - Connection: 2m cable with plug for WPSB power supply  - Dimensions: ø11 x 40-50mm  - Housing: brass, chrome-plated black  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 2  - 12 months manufacturer's warranty

per piece
€290.00
Compare Compare
Dot laser, red, battery operated Z-LASER Z1M18B-F-635-pe
XZLZA0000124 - €180.00
Dot laser, red, battery operated Z-LASER Z1M18B-F-635-pe
Battery operated dot laser for mobile positioning applications (Pointer)  - Output power: <1mW  - Wavelength: 635nm (red)  - Focus: 2.000mm, fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 2  - 12 months manufacturer's warranty

per piece
€180.00
Compare Compare
Dot laser, red, free focusable Z-LASER Z1F-635-pe-F
XZLZF0000102 - €210.00
Dot laser, red, free focusable Z-LASER Z1F-635-pe-F
Focusable mini spot laser module for non-mobile positioning applications  - Output power: <1mW  - Wavelength: 635nm (red)  - Focus: free focusable  - Supply voltage: 3-6VDC  - Connection: 2m cable with plug for WPSB power supply  - Dimensions: ø11 x 40-50mm  - Housing: brass, chrome-plated black  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 2  - 12 months manufacturer's warranty

per piece
€210.00
Compare Compare
Dot laser, red, free focusable Z-LASER Z1M18B-F-635-pe
XZLZM18RF088 - €310.00
Dot laser, red, free focusable Z-LASER Z1M18B-F-635-pe
Dot laser (Pointer) for non-mobile positioning applications  - Output power: <1mW  - Wavelength: 635nm (red)  - Projection: dot, elliptical  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2  - 24 months manufacturer's warranty

per piece
€310.00
Compare Compare
Line laser, green, free focusable Z-LASER Z10M18B3-F-520-lg90
XZLZM18GF565 - €530.00
Line laser, green, free focusable Z-LASER Z10M18B3-F-520-lg90
Linienlaser für stationäre Positionieranwendungen- Ausgangsleistung: 10mW- Wellenlänge: 520nm (grün)- bis zu 8m Linienlänge- Fokusabstand: frei einstellbar- Versorgungsspannung: 5-28VDC- Anschluss: M12x1 Rundsteckverbinder, 4polig - Abmessungen: ø20 x 108mm- Gehäuse: Messing verchromt- Betriebstemperatur: -10°C bis +50°C- Schutzart: IP67 - Laserklasse (EN 60825-1): 2M - 24 Monate Herstellergarantie

per piece
€530.00
Compare Compare
Line laser, green, free focusable Z-LASER Z20M18B3-F-520-lg90
XZLZM18GF530 - €590.00
Line laser, green, free focusable Z-LASER Z20M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 20mW  - Wavelength: 520nm (green)  - up to 15m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2M  - 24 months manufacturer's warranty

per piece
€590.00
Compare Compare
Line laser, green, free focusable Z-LASER Z40M18B3-F-520-lg90
XZLZM18GF501 - €650.00
Line laser, green, free focusable Z-LASER Z40M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 40mW  - Wavelength: 520nm (green)  - up to 20m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 2M  - 24 months manufacturer's warranty

per piece
€650.00
Compare Compare
Line laser, green, free focusable Z-LASER Z5M18B3-F-520-lg90
XZLZM18GF510 - €480.00
Line laser, green, free focusable Z-LASER Z5M18B3-F-520-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 520nm (green)  - up to 4m line length  - Focus: free focusable  - Supply voltage: 5-28VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€480.00
Compare Compare
Line laser, red Z-LASER Z10M18B-638-lg90
XZLZM18R0011 - €350.00
Line laser, red Z-LASER Z10M18B-638-lg90
Line laser for non-mobile positioning applications  - Output power: 10mW  - Wavelength: 638nm (red)  - ca. 3-5m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€350.00
Compare Compare
Line laser, red Z-LASER Z3M18B-635-lg90
XZLZM18R0021 - €270.00
Line laser, red Z-LASER Z3M18B-635-lg90
Line laser for non-mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€270.00
Compare Compare
Line laser, red Z-LASER Z5M18B-635-lg90
XZLZM18R0010 - €270.00
Line laser, red Z-LASER Z5M18B-635-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: fixed  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 93mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€270.00
Compare Compare
Line laser, red, battery operated Z-LASER Z3AT-635-lg90
XZLZA0000103 - €200.00
Line laser, red, battery operated Z-LASER Z3AT-635-lg90
Battery operated line laser for mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 1M  - 12 months manufacturer's warranty

per Piece
€200.00
Compare Compare
Line laser, red, battery operated Z-LASER Z5AT-635-lg90
XZLZA0000104 - €220.00
Line laser, red, battery operated Z-LASER Z5AT-635-lg90
Battery operated line laser for mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: fixed  - Supply voltage: 1.5VDC or 1.2VDC (Battery or rechargeable battery, AA) - ON/OFF switch  - Dimensions: ø20 x 124mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP40  - Laser class (EN 60825-1): 1M  - 12 months manufacturer's warranty

per piece
€220.00
Compare Compare
Line laser, red, free focusable Z-LASER Z10M18B-F-638-lg90
XZLZM18RF022 - €440.00
Line laser, red, free focusable Z-LASER Z10M18B-F-638-lg90
Line laser for non-mobile positioning applications  - Output power: 10mW  - Wavelength: 638nm (red)  - ca. 3-5m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€440.00
Compare Compare
Line laser, red, free focusable Z-LASER Z3M18B-F-635-lg90
XZLZM18RF020 - €360.00
Line laser, red, free focusable Z-LASER Z3M18B-F-635-lg90
Line laser for non-mobile positioning applications  - Output power: 3mW  - Wavelength: 635nm (red)  - ca. 1m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€360.00
Compare Compare
Line laser, red, free focusable Z-LASER Z5M18B-F-635-lg90
XZLZM18RF027 - €360.00
Line laser, red, free focusable Z-LASER Z5M18B-F-635-lg90
Line laser for non-mobile positioning applications  - Output power: 5mW  - Wavelength: 635nm (red)  - ca. 2-3m line length  - Focus: free focusable  - Supply voltage: 5-30VDC  - Connection: 4-pin M12 plug  - Dimensions: ø20 x 108mm  - Housing: brass nickel plated  - Working Temperature: -10°C to +50°C  - Protection class: IP67  - Laser class (EN 60825-1): 1M  - 24 months manufacturer's warranty

per piece
€360.00
Compare Compare
Line laser, red, Z-LASER Z15R-635-lg90
XZLZR0000003 - €500.00
Line laser, red, Z-LASER Z15R-635-lg90
Line laser for non-mobile positioning applications  - Output power: 15mW  - Wavelength: 635nm (red)  - ca. 4-6m line length  - Focus: fixed  - Supply voltage: 90-265VAC  - Connection: 2m cable with standard plug  - Dimensions: ø40 x 200mm  - Housing: Aluminium  - Working Temperature: -10°C to +50°C  - Protection class: IP65  - Laser class (EN 60825-1): 2M  - 12 months manufacturer's warranty

per piece
€500.00
Compare Compare
Line laser, red, Z-LASER Z40R-635-lg90
XZLZR0000092 - €640.00
Line laser, red, Z-LASER Z40R-635-lg90
Line laser for non-mobile positioning applications- Output power: 40mW- Wavelength: 635nm (red) - ca. 11-15m line length- Focus: fixed- Supply voltage: 90-265VAC- Connection: 2m cable with standard plug- Dimensions: ø40 x 200mm - Housing: Aluminium- Working Temperature: -10°C to +50°C - Protection class: IP65 - Laser class (EN 60825-1): 2M- 12 months manufacturer's warranty

per piece
€640.00
Compare Compare
